0026482043

Part Number 0026482043

Manufacturer Molex

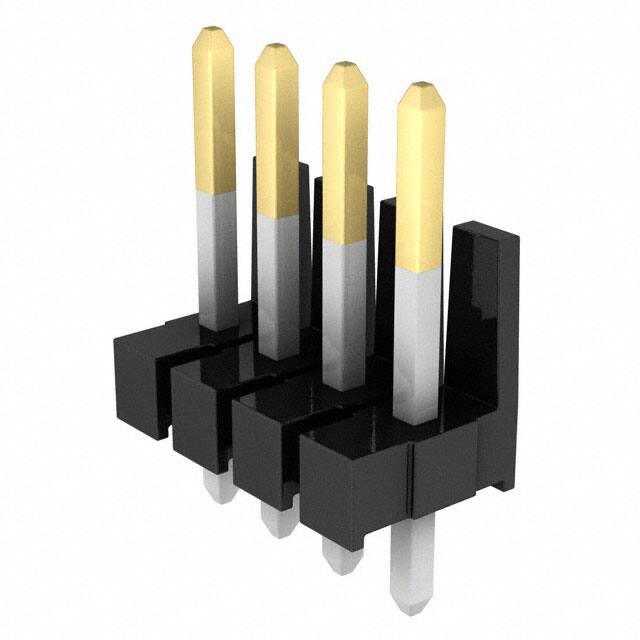

Description CONN HEADER VERT 4POS 3.96MM

Package -

Datasheet 026481023_sd.pdf

Quantity

16281 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Rectangular Connectors - Headers, Male Pins

Contact Material

Brass

Contact Finish Thickness - Mating

20.0µin (0.51µm)

Contact Finish - Post

Tin

Number of Positions Loaded

All

Voltage Rating

Number of Positions

Mounting Type

Through Hole

Termination

Solder

Current Rating (Amps)

Contact Type

Male Pin

Shrouding

Shrouded - 1 Wall

Features

Package

Bulk

Fastening Type

Push-Pull

Insulation Height

0.360" (9.14mm)

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Connector Type

Header, Breakaway

Overall Contact Length

0.750" (19.05mm)

Operating Temperature

Mated Stacking Heights

Mfr

Molex

Number of Rows

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Pitch - Mating

0.156" (3.96mm)

Row Spacing - Mating

Style

Board to Board or Cable

Ingress Protection

Base Product Number

002648

Series

KK396, 41681

Product Status

Active

Contact Length - Mating

0.450" (11.43mm)

Contact Length - Post

0.172" (4.37mm)

Contact Finish - Mating

Gold

Insulation Material

Polyester, Glass Filled

Contact Finish Thickness - Post

100.0µin (2.54µm)

Documents & Media

RESOURCE TYPE LINK

PCN Design/Specification

PCN10512887.pdf

Datasheets

026481023_sd.pdf
