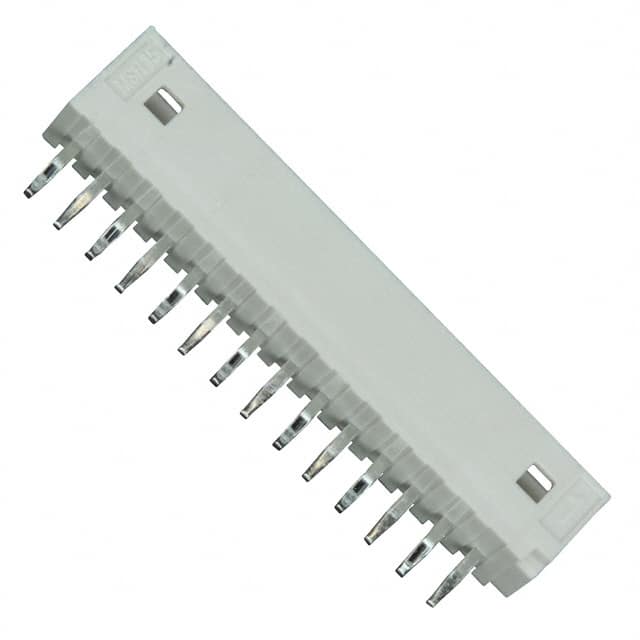

0530141410

Part Number 0530141410

Manufacturer Molex

Description CONN HEADER VERT 14POS 2MM

Package -

Datasheet 530140410_sd.pdf

Quantity

35399 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Contact Length - Mating

0.122" (3.10mm)

Insulation Color

Natural

Contact Type

Male Blade

Mounting Type

Through Hole

Overall Contact Length

0.327" (8.30mm)

Row Spacing - Mating

Fastening Type

Detent Lock

Contact Finish Thickness - Post

Mfr

Molex

Connector Type

Header

Contact Length - Post

0.138" (3.50mm)

Features

Voltage Rating

Product Status

Obsolete

Number of Positions Loaded

All

Style

Board to Cable/Wire

Contact Shape

Rectangular

Insulation Material

Polyamide (PA66), Nylon 6/6, Glass Filled

Mated Stacking Heights

Base Product Number

053014

Package

Bulk

Termination

Kinked Pin, Solder

Material Flammability Rating

UL94 V-0

Operating Temperature

Current Rating (Amps)

Pitch - Mating

0.079" (2.00mm)

Number of Positions

Number of Rows

Contact Finish - Post

Tin

Series

MicroBlade 53014

Shrouding

Shrouded - 4 Wall

Contact Material

Phosphor Bronze

Applications

General Purpose, Telecommunications

Insulation Height

0.230" (5.85mm)

Contact Finish - Mating

Tin

Contact Finish Thickness - Mating

Ingress Protection

Documents & Media

RESOURCE TYPE LINK

Datasheets

530140410_sd.pdf

3D Drawings

0530141410_2.pdf

HTML Datasheet

0530140810_2.pdf

PCN Obsolescence/ EOL

GCN_503041.pdf
