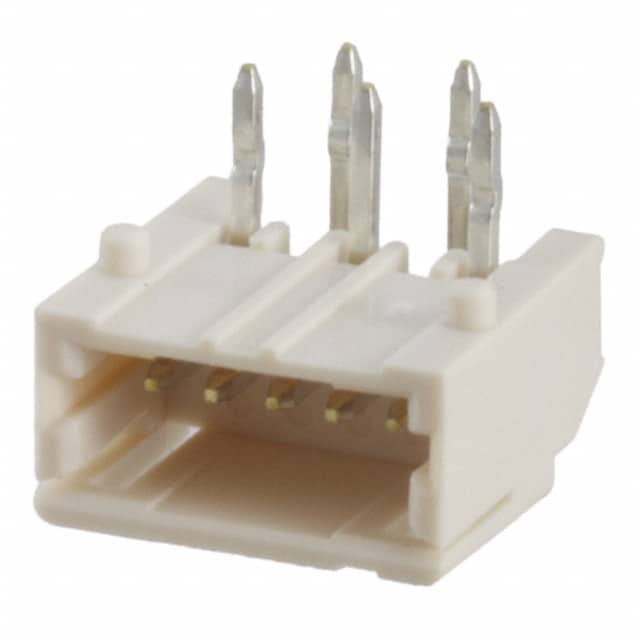

0554540570

Part Number 0554540570

Manufacturer Molex

Description CONN HEADER R/A 5POS 1.25MM

Package -

Datasheet PS-54596-018.pdf 0554541970_5.pdf

Quantity

35397 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Insulation Material

Polyamide (PA), Nylon

Current Rating (Amps)

Number of Positions Loaded

All

Ingress Protection

Mfr

Molex

Pitch - Mating

0.049" (1.25mm)

Fastening Type

Push-Pull

Overall Contact Length

Number of Positions

Contact Type

Male Pin

Number of Rows

Termination

Solder

Contact Finish - Post

Tin

Package

Tray

Product Status

Obsolete

Connector Type

Header

Contact Length - Post

0.118" (3.00mm)

Mated Stacking Heights

Contact Finish Thickness - Post

Row Spacing - Mating

Style

Board to Cable/Wire

Contact Length - Mating

0.110" (2.79mm)

Features

Board Guide

Material Flammability Rating

UL94 V-0

Insulation Height

0.177" (4.50mm)

Applications

Series

Mini Mi II 55454

Contact Finish Thickness - Mating

Operating Temperature

Insulation Color

Natural

Base Product Number

055454

Mounting Type

Through Hole, Right Angle

Contact Finish - Mating

Tin

Shrouding

Shrouded - 4 Wall

Contact Shape

Square

Contact Material

Brass

Voltage Rating

Documents & Media

RESOURCE TYPE LINK

PCN Obsolescence/ EOL

pcn506129.pdf

HTML Datasheet

0554540870.pdf
0554470570_3.pdf

Datasheets

PS-54596-018.pdf
0554541970_5.pdf
