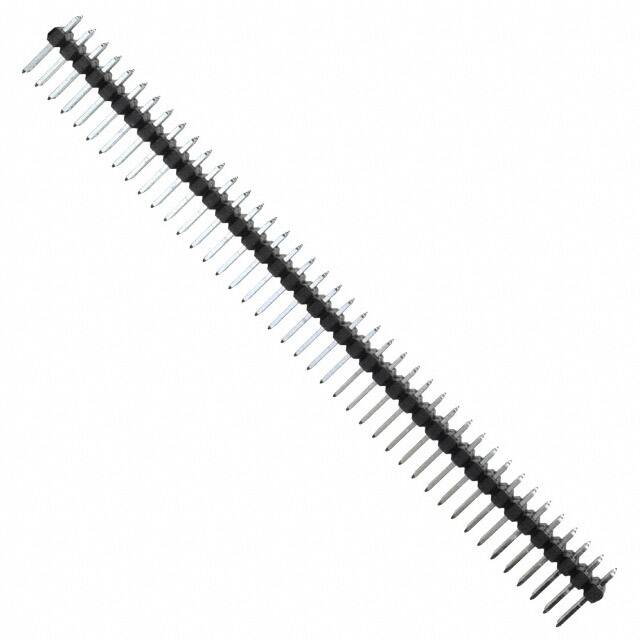

0702800439

Part Number 0702800439

Manufacturer Molex

Description CONN HEADER VERT 82POS 2.54MM

Package -

Datasheet 702800449_sd.pdf PS-70280-001.pdf

Quantity

11622 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Rectangular Connectors - Headers, Male Pins

Mounting Type

Through Hole

Pitch - Mating

0.100" (2.54mm)

Row Spacing - Mating

0.100" (2.54mm)

Package

Bulk

Contact Type

Male Pin

Insulation Height

0.090" (2.29mm)

Contact Shape

Square

Voltage Rating

Applications

Automotive, General Purpose, Lighting, Medical, Telecommunications

Product Status

Active

Shrouding

Unshrouded

Series

C-Grid 70280

Fastening Type

Push-Pull

Contact Finish - Mating

Tin

Operating Temperature

Connector Type

Header, Breakaway

Number of Positions

Style

Board to Board or Cable

Contact Finish - Post

Tin

Current Rating (Amps)

Contact Length - Post

0.107" (2.71mm)

Overall Contact Length

0.437" (11.10mm)

Contact Finish Thickness - Mating

150.0µin (3.81µm)

Material Flammability Rating

UL94 V-0

Contact Finish Thickness - Post

Base Product Number

070280

Termination

Solder

Insulation Material

Liquid Crystal Polymer (LCP), Glass Filled

Features

Mfr

Molex

Contact Material

Copper Alloy

Contact Length - Mating

0.240" (6.10mm)

Insulation Color

Black

Mated Stacking Heights

Number of Rows

Number of Positions Loaded

All

Ingress Protection

Documents & Media

RESOURCE TYPE LINK

Datasheets

702800449_sd.pdf
PS-70280-001.pdf

3D Drawings

70280-0439.pdf
