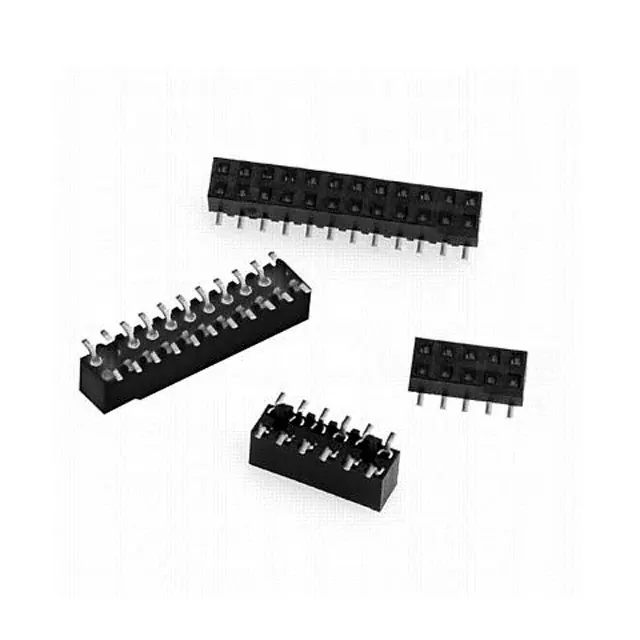

150260-5002-TB

Part Number 150260-5002-TB

Manufacturer 3M

Description CONN RCPT 60P 0.079 GOLD PCB R/A

Package -

Datasheet 3m-boardmount-socket-1502-series-2mm-ts-0519.pdf 3mtm-2-mm-boardmount-skt-2mm-x-2mm-ra-soldertails-ts0520.pdf 1502Series.pdf

Quantity

50539 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Rectangular Connectors - Headers, Receptacles, Female Sockets

Number of Rows

Insulation Color

Black

Series

1502

Row Spacing - Mating

0.079" (2.00mm)

Mounting Type

Through Hole, Right Angle

Termination

Solder

Contact Finish Thickness - Post

200.0µin (5.08µm)

Base Product Number

150260

Number of Positions

Contact Shape

Square

Connector Type

Receptacle

Number of Positions Loaded

All

Mated Stacking Heights

Ingress Protection

Fastening Type

Push-Pull

Insulation Height

0.179" (4.55mm)

Features

Applications

Insulation Material

Thermoplastic

Product Status

Obsolete

Contact Finish - Mating

Gold

Contact Length - Post

0.100" (2.54mm)

Contact Material

Copper Alloy

Mfr

Package

Tray

Contact Type

Female Socket

Style

Board to Board or Cable

Current Rating (Amps)

Material Flammability Rating

UL94 V-0

Pitch - Mating

0.079" (2.00mm)

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Operating Temperature

-55°C ~ 105°C

Contact Finish - Post

Tin-Lead

Voltage Rating

500VDC

Documents & Media

RESOURCE TYPE LINK

Datasheets

3m-boardmount-socket-1502-series-2mm-ts-0519.pdf
3mtm-2-mm-boardmount-skt-2mm-x-2mm-ra-soldertails-ts0520.pdf
1502Series.pdf
