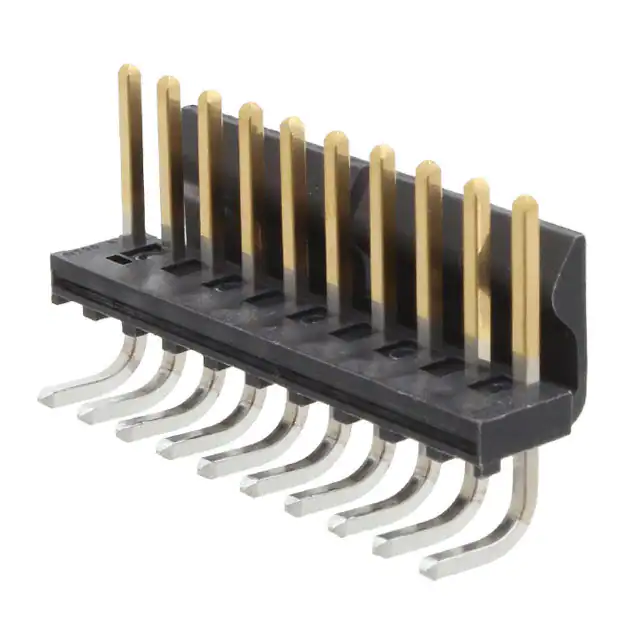

1718141010

Part Number 1718141010

Manufacturer Molex

Description CONN HEADER R/A 10POS 3.96MM

Package -

Datasheet PS-171813-0002.pdf 171813,14_Brief.pdf 1718140002_sd.pdf

Quantity

65081 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Rectangular Connectors - Headers, Male Pins

Style

Board to Board or Cable

Product Status

Active

Overall Contact Length

Voltage Rating

Base Product Number

171814

Number of Rows

Operating Temperature

Row Spacing - Mating

Features

Mfr

Molex

Package

Bulk

Number of Positions

Series

KK396, 171814

Contact Length - Mating

0.446" (11.33mm)

Contact Finish - Post

Tin

Ingress Protection

Mated Stacking Heights

Contact Finish Thickness - Post

100.0µin (2.54µm)

Mounting Type

Through Hole, Right Angle

Contact Finish Thickness - Mating

15.0µin (0.38µm)

Insulation Material

Polyamide (PA), Nylon

Applications

Automotive, General Purpose, Industrial, Medical, Telecommunications

Number of Positions Loaded

All

Fastening Type

Friction Lock

Contact Shape

Square

Connector Type

Header

Shrouding

Shrouded - 1 Wall

Contact Type

Male Pin

Insulation Height

0.394" (10.00mm)

Material Flammability Rating

UL94 V-2

Insulation Color

Black

Pitch - Mating

0.156" (3.96mm)

Termination

Solder

Contact Length - Post

0.100" (2.54mm)

Contact Finish - Mating

Gold

Contact Material

Brass

Current Rating (Amps)

Documents & Media

RESOURCE TYPE LINK

Datasheets

PS-171813-0002.pdf
171813,14_Brief.pdf
1718140002_sd.pdf

PCN Assembly/Origin

PCN502730.pdf

PCN Other

KK_396_Cosmetic_Deviation.pdf
