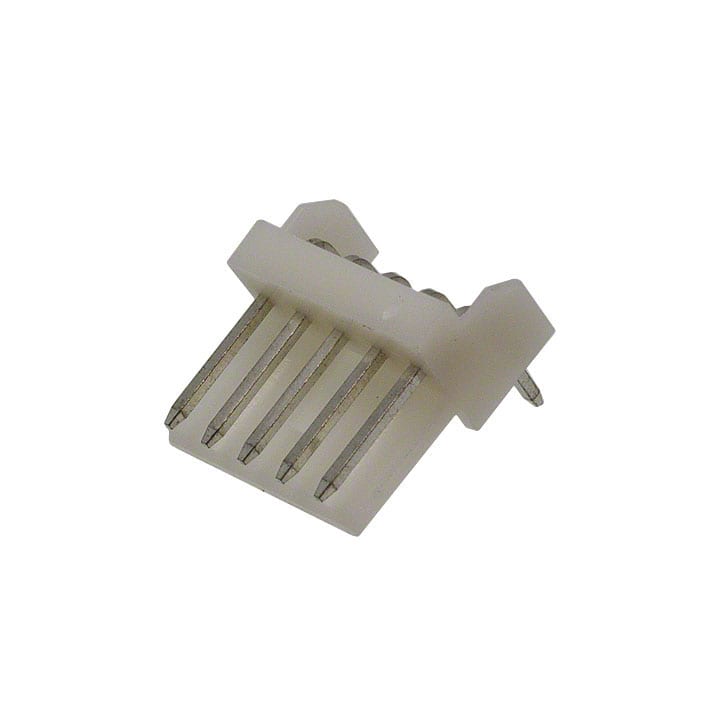

171826-5

Part Number 171826-5

Manufacturer TE Connectivity AMP Connectors

Description CONN HEADER R/A 5POS 2.5MM

Package -

Datasheet 171826-2.pdf

Quantity

14330 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Current Rating (Amps)

Mounting Type

Through Hole, Right Angle

Number of Positions Loaded

All

Contact Finish Thickness - Mating

31.5µin (0.80µm)

Fastening Type

Latch Holder

Contact Material

Brass

Row Spacing - Mating

Style

Board to Cable/Wire

Shrouding

Shrouded - 1 Wall

Mated Stacking Heights

Package

Bulk

Connector Type

Header

Contact Finish - Mating

Tin

Insulation Material

Polyamide (PA66), Nylon 6/6

Ingress Protection

Base Product Number

171826

Series

Contact Shape

Square

Material Flammability Rating

UL94 V-0

Contact Finish Thickness - Post

31.5µin (0.80µm)

Contact Length - Mating

0.295" (7.49mm)

Voltage Rating

250VAC, 350VDC

Applications

General Purpose

Number of Positions

Number of Rows

Contact Length - Post

0.142" (3.60mm)

Insulation Color

Natural

Termination

Solder

Overall Contact Length

Features

Operating Temperature

Mfr

TE Connectivity AMP Connectors

Product Status

Active

Insulation Height

0.264" (6.70mm)

Contact Type

Male Pin

Pitch - Mating

0.098" (2.50mm)

Contact Finish - Post

Tin

Documents & Media

RESOURCE TYPE LINK

PCN Packaging

P-22-022056.pdf

HTML Datasheet

171826-5_5.pdf

Datasheets

171826-2.pdf

3D Drawings

171826-5_3.pdf
