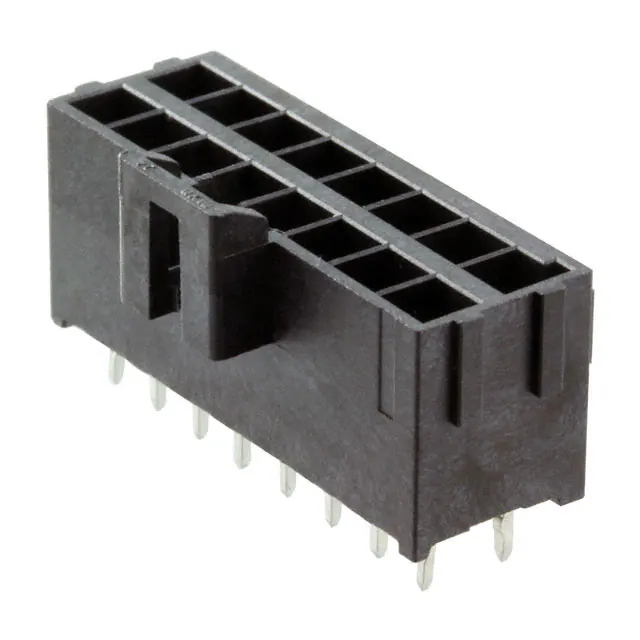

1722982316

Part Number 1722982316

Manufacturer Molex

Description CONN HEADER VERT 16POS 3.5MM

Package -

Datasheet 1722982316_sd.pdf

Quantity

25162 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Rectangular Connectors - Headers, Male Pins

Base Product Number

172298

Contact Shape

Square

Insulation Material

Liquid Crystal Polymer (LCP)

Voltage Rating

400V

Features

Board Guide

Package

Bulk

Number of Positions

Contact Length - Mating

Series

Ultra-Fit 172298

Contact Type

Male Pin

Number of Rows

Number of Positions Loaded

All

Mounting Type

Through Hole

Overall Contact Length

Operating Temperature

-40°C ~ 120°C

Fastening Type

Latch Holder

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Product Status

Active

Connector Type

Header

Pitch - Mating

0.138" (3.50mm)

Row Spacing - Mating

0.181" (4.60mm)

Material Flammability Rating

UL94 V-0

Current Rating (Amps)

Termination

Kinked Pin, Solder

Mated Stacking Heights

26.99mm

Contact Finish Thickness - Post

60.0µin (1.52µm)

Applications

Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications

Mfr

Molex

Contact Finish - Mating

Gold

Contact Material

Copper Alloy

Ingress Protection

Contact Finish - Post

Tin

Shrouding

Shrouded - 4 Wall

Insulation Height

0.465" (11.80mm)

Style

Board to Cable/Wire

Contact Length - Post

0.126" (3.20mm)

Insulation Color

Natural

Documents & Media

RESOURCE TYPE LINK

3D Drawings

172298-2316.pdf
