1728000000

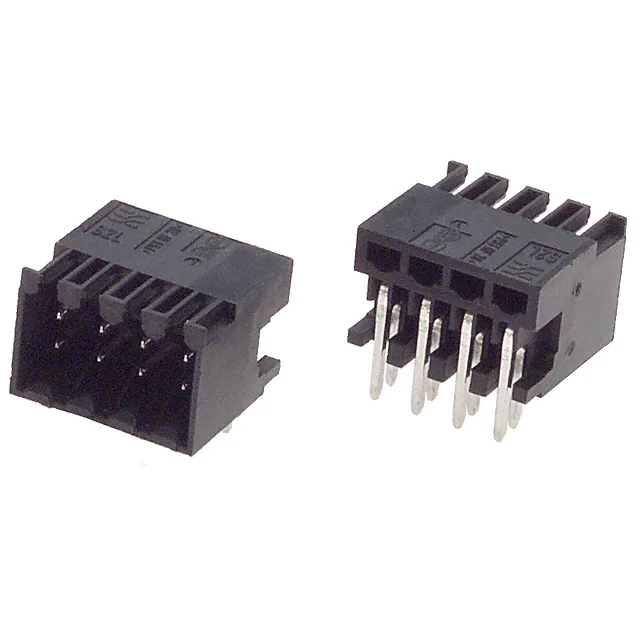

Part Number 1728000000

Manufacturer Weidmüller

Description TERM BLOCK HDR 8POS 90DEG 3.5MM

Package -

Datasheet 1728000000.pdf

Quantity

74507 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Terminal Blocks - Headers, Plugs and Sockets

Product Status

Active

Material Flammability Rating

UL94 V-0

Type

Header, Male Pins, Shrouded (4 Side)

Positions Per Level

Number of Levels

Mounting Type

Through Hole

Color

Black

Ingress Protection

IP10

Header Orientation

90°, Right Angle

Wire Gauge or Range - mm²

Contact Mating Finish

Tin

Contact Tail Length

0.138" (3.50mm)

Wire Strip Length

Screw Size

Torque - Screw

Package

Bulk

Current - IEC

10A

Voltage - UL

150 V

Wire Gauge or Range - AWG

Operating Temperature

-50°C ~ 100°C

Pitch

0.138" (3.50mm)

Current - UL

10 A

Mfr

Weidmüller

Number of Positions

Plug Wire Entry

Contact Material

Copper Alloy

Insulation Height

0.410" (10.41mm)

Voltage - IEC

250 V

Housing Material

Polybutylene Terephthalate (PBT)

Series

Omnimate S2L

Termination Style

Solder

Features

Documents & Media

RESOURCE TYPE LINK

HTML Datasheet

1728000000-1.pdf

Datasheets

1728000000.pdf
