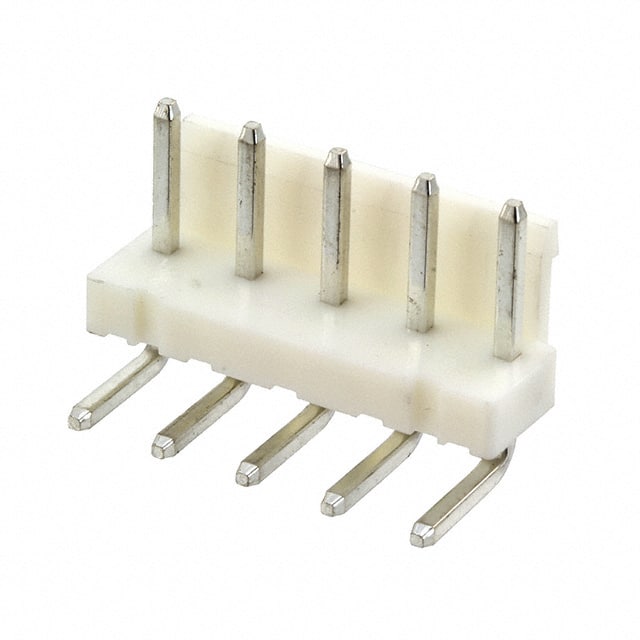

1744048-5

Part Number 1744048-5

Manufacturer TE Connectivity AMP Connectors

Description CONN HEADER R/A 5POS 5.08MM

Package -

Datasheet 1744048-6.pdf

Quantity

59756 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Insulation Height

0.335" (8.51mm)

Ingress Protection

Row Spacing - Mating

Pitch - Mating

0.200" (5.08mm)

Number of Positions Loaded

All

Fastening Type

Friction Lock

Contact Material

Copper Alloy

Current Rating (Amps)

7.5A

Contact Type

Male Pin

Material Flammability Rating

UL94 V-0

Applications

General Purpose, Industrial, Lighting

Contact Shape

Square

Operating Temperature

-25°C ~ 105°C

Mated Stacking Heights

Base Product Number

1744048

Termination

Solder

Package

Bulk

Contact Length - Post

0.142" (3.60mm)

Insulation Material

Polyamide (PA66), Nylon 6/6

Insulation Color

Natural

Voltage Rating

250VAC

Shrouding

Shrouded - 1 Wall

Overall Contact Length

Contact Finish Thickness - Post

80.0µin (2.03µm)

Product Status

Active

Number of Positions

Number of Rows

Mounting Type

Through Hole, Right Angle

Contact Finish - Mating

Tin

Features

Mfr

TE Connectivity AMP Connectors

Series

Economy Power

Contact Finish - Post

Tin

Connector Type

Header

Style

Board to Cable/Wire

Contact Length - Mating

0.338" (8.59mm)

Contact Finish Thickness - Mating

80.0µin (2.03µm)

Documents & Media

RESOURCE TYPE LINK

Datasheets

1744048-6.pdf

PCN Design/Specification

PCN-22-133158.pdf

3D Drawings

1744048-5_2.pdf
