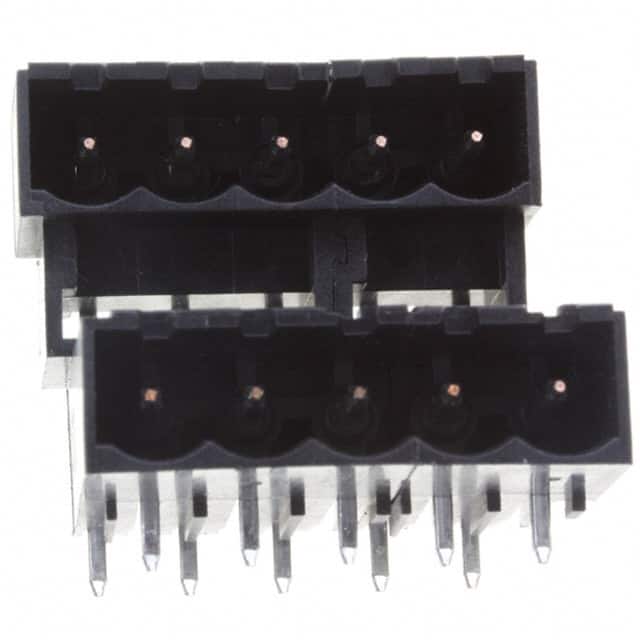

1776166-5

Part Number 1776166-5

Manufacturer TE Connectivity AMP Connectors

Description TERM BLOCK HDR 10POS 90DEG 5MM

Package -

Datasheet 1776166-6.pdf 284391-3.pdf

Quantity

92325 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Features

Interlocking (Side)

Series

Buchanan

Type

Header, Male Pins, Shrouded (4 Side)

Number of Levels

Insulation Height

0.902" (22.90mm)

Color

Black

Termination Style

Solder

Contact Mating Finish

Tin

Voltage - UL

300 V

Material Flammability Rating

UL94 V-0

Pitch

0.197" (5.00mm)

Current - UL

12 A

Torque - Screw

Wire Strip Length

Contact Material

Copper Alloy

Package

Bulk

Mounting Type

Through Hole

Product Status

Active

Operating Temperature

-40°C ~ 110°C

Ingress Protection

Housing Material

Polyamide (PA), Nylon

Mfr

TE Connectivity AMP Connectors

Current - IEC

Positions Per Level

Wire Gauge or Range - mm²

Screw Size

Contact Tail Length

0.138" (3.50mm)

Base Product Number

1776166

Number of Positions

Header Orientation

90°, Right Angle

Plug Wire Entry

Wire Gauge or Range - AWG

Documents & Media

RESOURCE TYPE LINK

HTML Datasheet

1776166-5_2.pdf

Environmental Information

1776166-5_4.pdf

Datasheets

1776166-6.pdf
284391-3.pdf

3D Drawings

1776166-5.pdf
