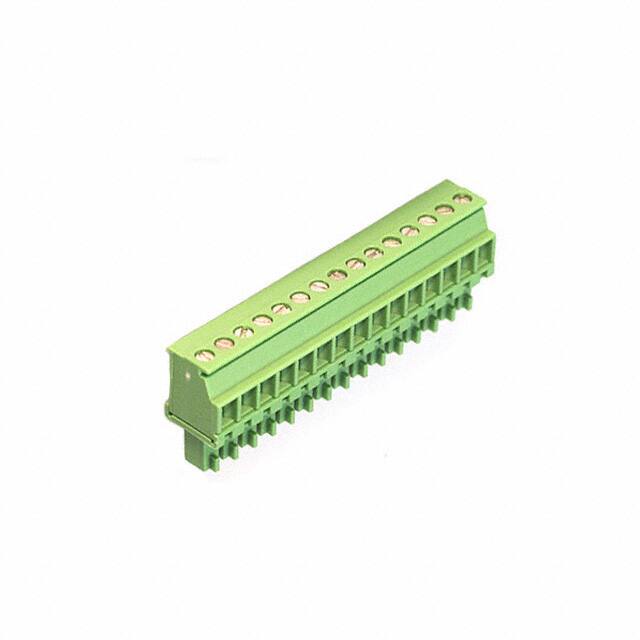

1827253

Part Number 1827253

Manufacturer Phoenix Contact

Description TERM BLOCK PLUG 15POS 3.81MM

Package -

Datasheet datasheet-1827253-1.pdf

Quantity

42526 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Terminal Blocks - Headers, Plugs and Sockets

Current - IEC

Mounting Type

Free Hanging (In-Line)

Housing Material

Polyamide (PA), Nylon

Mfr

Phoenix Contact

Contact Tail Length

Package

Bulk

Current - UL

8 A

Wire Gauge or Range - AWG

14-30 AWG

Screw Size

Type

Plug, Female Sockets

Color

Green

Pitch

0.150" (3.81mm)

Product Status

Active

Positions Per Level

Termination Style

Screw - Rising Cage Clamp

Features

Number of Positions

Material Flammability Rating

UL94 V-0

Contact Material

Header Orientation

Voltage - UL

300 V

Contact Mating Finish

Tin

Torque - Screw

0.22-0.25 Nm (1.9-2.2 Lb-In)

Plug Wire Entry

90°

Wire Gauge or Range - mm²

0.14-1.5mm²

Ingress Protection

Voltage - IEC

320 V

Insulation Height

0.752" (19.10mm)

Series

COMBICON MCVR

Number of Levels

Operating Temperature

Wire Strip Length

7mm

Documents & Media

RESOURCE TYPE LINK

PCN Design/Specification

PCN-PCC-7893-2022.pdf

Datasheets

datasheet-1827253-1.pdf
