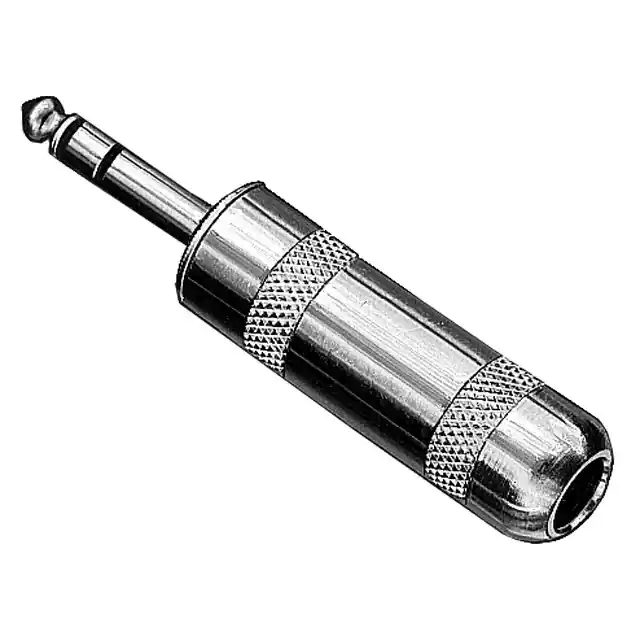

190

Part Number 190

Manufacturer Switchcraft Inc.

Description CONN PLUG STEREO 6.35MM 3COND

Package -

Datasheet 190_CD.pdf

Quantity

78372 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Barrel - Audio Connectors

Voltage - Rated

Actual Diameter

0.250" (6.35mm)

Shielding

Shielded

Insulation Color

Includes

3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube

Gender

Male

Internal Switch(s)

Does Not Contain Switch

Operating Temperature

Panel Hole Size

Thread Size

Product Status

Active

Mating Length/Depth

1.200" (30.50mm)

Contact Material

Brass

Package

Bulk

Signal Lines

Stereo (3 Conductor, TRS)

Number of Positions/Contacts

3 Conductors, 3 Contacts

Features

Contact Material - Plating

Nickel

Connector Type

Phone Plug

Mounting Type

Free Hanging (In-Line)

Termination

Solder Eyelet(s)

Cable Opening

0.380" (9.65mm)

Industry Recognized Mating Diameter

6.35mm (0.250", 1/4") - Headphone

Body Material

Brass

Housing Material

Brass

Mfr

Switchcraft Inc.

Series

Body Color

Silver

Documents & Media

RESOURCE TYPE LINK

Environmental Information

RoHS_2015_863_EU_CoC_General_Statement_Switchcraft_20190722.pdf

Datasheets

190_CD.pdf

HTML Datasheet

190-1.pdf
