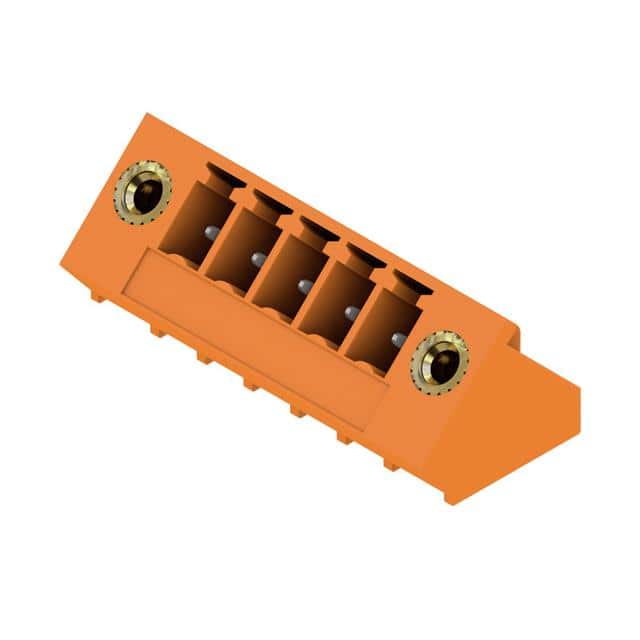

1976770000

Part Number 1976770000

Manufacturer Weidmüller

Description TERM BLOCK HDR 5POS 3.81MM

Package -

Datasheet

Quantity

69821 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Contact Tail Length

0.126" (3.20mm)

Color

Orange

Positions Per Level

Package

Bulk

Mounting Type

Through Hole

Wire Strip Length

Series

Omnimate SC

Product Status

Active

Current - UL

10 A

Material Flammability Rating

UL94 V-0

Mfr

Weidmüller

Number of Positions

Contact Material

Copper Alloy

Type

Header, Male Pins, Shrouded (4 Side)

Termination Style

Solder

Voltage - UL

300 V

Wire Gauge or Range - mm²

Operating Temperature

-50°C ~ 120°C

Ingress Protection

IP20

Insulation Height

0.433" (11.00mm)

Header Orientation

135°

Current - IEC

17.5A

Wire Gauge or Range - AWG

Screw Size

Torque - Screw

Housing Material

Polyamide (PA), Nylon, Glass Filled

Contact Mating Finish

Tin

Number of Levels

Pitch

0.150" (3.81mm)

Plug Wire Entry

Voltage - IEC

320 V

Features

Mating Flange
