20021221-00020C4LF

Part Number 20021221-00020C4LF

Manufacturer Amphenol ICC (FCI)

Description CONN HEADER SMD 20POS 1.27MM

Package -

Datasheet

Quantity

88093 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Features

Pick and Place

Row Spacing - Mating

0.050" (1.27mm)

Contact Length - Mating

0.120" (3.05mm)

Contact Finish - Post

Tin

Pitch - Mating

0.050" (1.27mm)

Product Status

Active

Style

Board to Board

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness - Mating

10.0µin (0.25µm)

Current Rating (Amps)

1A per Contact

Package

Tape & Reel (TR)^^Cut Tape (CT)

Contact Type

Male Pin

Overall Contact Length

Insulation Color

Black

Mated Stacking Heights

Base Product Number

20021221

Number of Rows

Mounting Type

Surface Mount

Termination

Solder

Contact Length - Post

Insulation Material

Thermoplastic

Material Flammability Rating

UL94 V-0

Number of Positions

Number of Positions Loaded

All

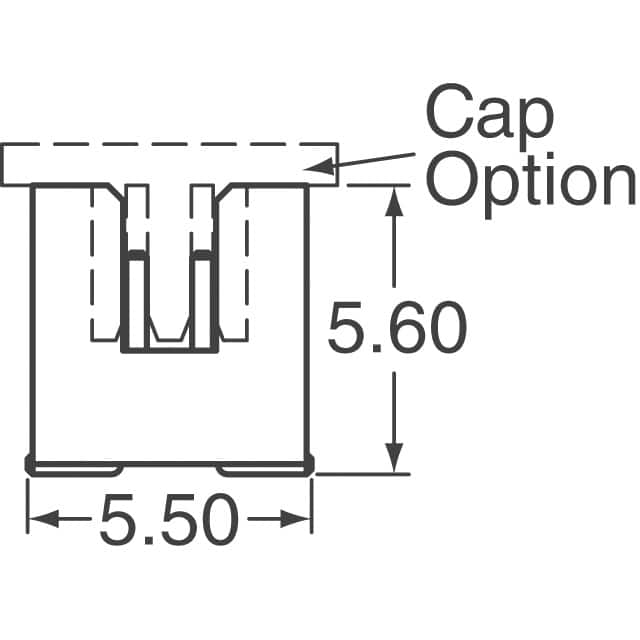

Insulation Height

0.220" (5.60mm)

Contact Finish - Mating

Gold

Applications

Mfr

Amphenol ICC (FCI)

Series

Minitek127® 1.27mm

Connector Type

Header

Fastening Type

Push-Pull

Voltage Rating

125VAC

Contact Finish Thickness - Post

50.0µin (1.27µm)

Ingress Protection

Contact Shape

Square

Contact Material

Copper Alloy

Operating Temperature

-55°C ~ 125°C

Documents & Media

RESOURCE TYPE LINK

PCN Design/Specification

PCN-12_117-R.1_Design_Change.pdf
PCN-12117-R.1_BTB_Design_Change.pdf

HTML Datasheet

20021321-00006C6LF.pdf
