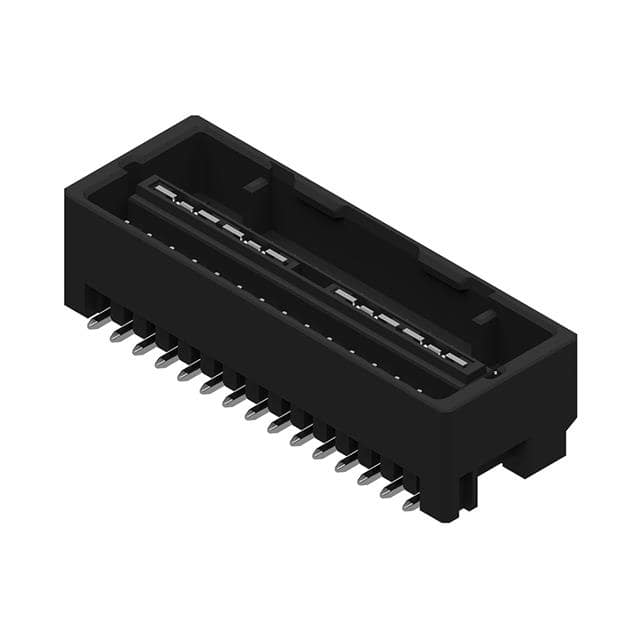

2011970361

Part Number 2011970361

Manufacturer Molex

Description SPOT-ON 2.0 DR 201197 EMBSTP PKG

Package -

Datasheet 2011970363.pdf

Quantity

19414 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Style

Board to Cable/Wire

Contact Type

Male Pin

Number of Rows

Package

Tape & Reel (TR)

Product Status

Active

Number of Positions Loaded

All

Fastening Type

Latch Holder

Contact Shape

Square

Contact Finish - Post

Tin

Insulation Material

Polyamide (PA), Nylon, Glass Filled

Ingress Protection

Series

Spot-On 2.0 201197

Mounting Type

Surface Mount

Contact Finish Thickness - Mating

39.4µin (1.00µm)

Pitch - Mating

0.079" (2.00mm)

Contact Length - Mating

Insulation Height

0.354" (9.00mm)

Insulation Color

Black

Contact Finish Thickness - Post

39.4µin (1.00µm)

Base Product Number

201197

Connector Type

Header

Row Spacing - Mating

0.165" (4.20mm)

Mated Stacking Heights

Operating Temperature

-40°C ~ 105°C

Number of Positions

Shrouding

Shrouded - 4 Wall

Termination

Solder

Features

Solder Retention

Overall Contact Length

Voltage Rating

250V

Contact Length - Post

Contact Finish - Mating

Tin

Contact Material

Brass

Current Rating (Amps)

Varies by Wire Gauge

Mfr

Molex

Material Flammability Rating

UL94 V-0

Applications

General Purpose

Documents & Media

RESOURCE TYPE LINK

Datasheets

2011970363.pdf
