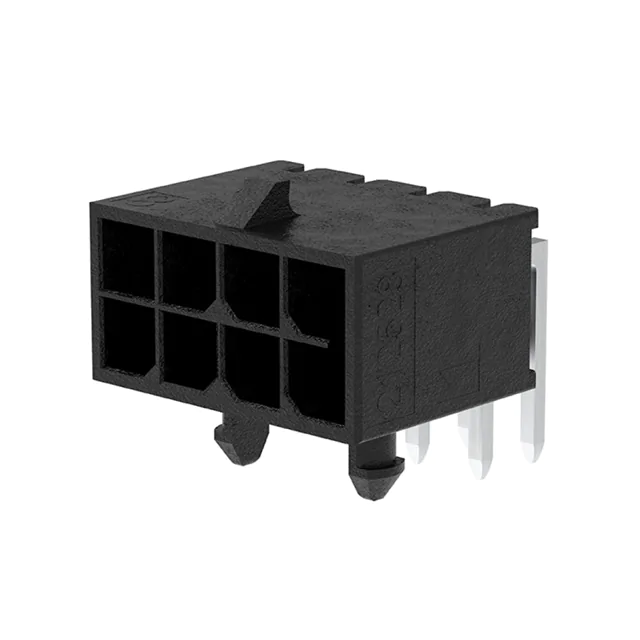

2125280800
2125280800
Favorite Products
Request Free Samples
2125280800
2125280800
Molex
R/A HDR TIN 2X4CKT
-
2125280800_PCB_HEADERS.pdf 2125280401_sd.pdf
30861 In Stock
Fill out the form and we will contact you shortly.
Contact Information
Please send RFQ and we will contact you shortly.
*
*
*
*
*
Product Attributes
Type PARAMETERS
Categories
Connectors, Interconnects , Rectangular Connectors - Headers, Male Pins
Contact Type
Male Pin
Contact Length - Mating
-
Contact Length - Post
0.125" (3.18mm)
Product Status
Active
Mounting Type
Through Hole, Right Angle
Contact Shape
Square
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Termination
Solder
Insulation Color
Black
Current Rating (Amps)
Varies by Wire Gauge
Mfr
Molex
Number of Rows
2
Shrouding
Shrouded - 4 Wall
Fastening Type
Locking Ramp
Insulation Height
0.291" (7.40mm)
Contact Finish - Mating
Tin
Insulation Material
Liquid Crystal Polymer (LCP), Glass Filled
Mated Stacking Heights
-
Applications
-
Style
Board to Cable/Wire
Contact Finish Thickness - Mating
-
Contact Material
Copper Alloy
Contact Finish Thickness - Post
-
Features
Board Lock
Package
Tray
Pitch - Mating
0.118" (3.00mm)
Voltage Rating
600VAC/DC
Series
Micro-Fit+ 212528
Connector Type
Header
Number of Positions
8
Number of Positions Loaded
All
Row Spacing - Mating
0.118" (3.00mm)
Overall Contact Length
-
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Base Product Number
212528
Documents & Media
RESOURCE TYPE LINK
PCN Assembly/Origin
PCN510379_retraction.pdf
Datasheets
2125280800_PCB_HEADERS.pdf
2125280401_sd.pdf
