238

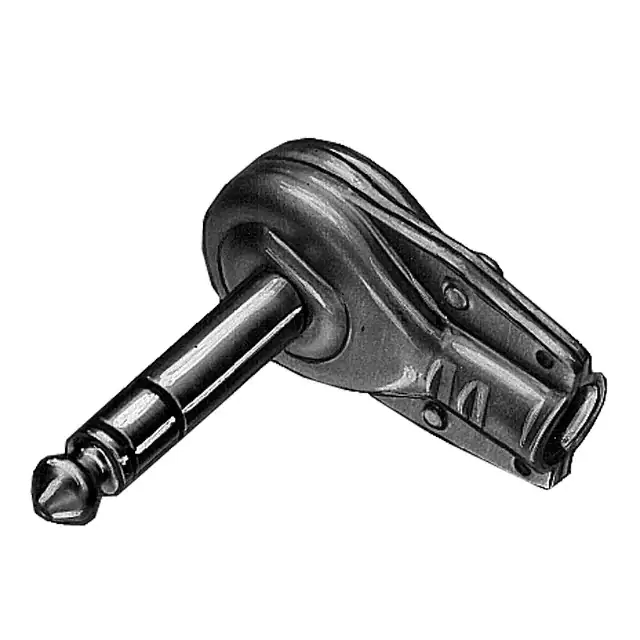

Part Number 238

Manufacturer Switchcraft Inc.

Description CONN PLUG STEREO 6.35MM RA 3COND

Package -

Datasheet 238X_CD.pdf

Quantity

80157 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Barrel - Audio Connectors

Includes

5 pcs - 1 Connector, 2 pc Handle, 2 Screws

Panel Hole Size

Mounting Type

Free Hanging (In-Line), Right Angle

Series

230

Connector Type

Phone Plug

Signal Lines

Stereo (3 Conductor, TRS)

Cable Opening

Package

Bulk

Industry Recognized Mating Diameter

6.35mm (0.250", 1/4") - Headphone

Features

Operating Temperature

Thread Size

Mfr

Switchcraft Inc.

Actual Diameter

0.250" (6.35mm)

Number of Positions/Contacts

3 Conductors, 3 Contacts

Contact Material - Plating

Tin

Body Material

Brass

Body Color

Silver

Product Status

Obsolete

Insulation Color

Voltage - Rated

500VAC

Housing Material

Plastic

Contact Material

Brass

Gender

Male

Internal Switch(s)

Does Not Contain Switch

Shielding

Shielded

Termination

Solder

Mating Length/Depth

1.188" (30.20mm)

Documents & Media

RESOURCE TYPE LINK

HTML Datasheet

238.pdf

Datasheets

238X_CD.pdf
