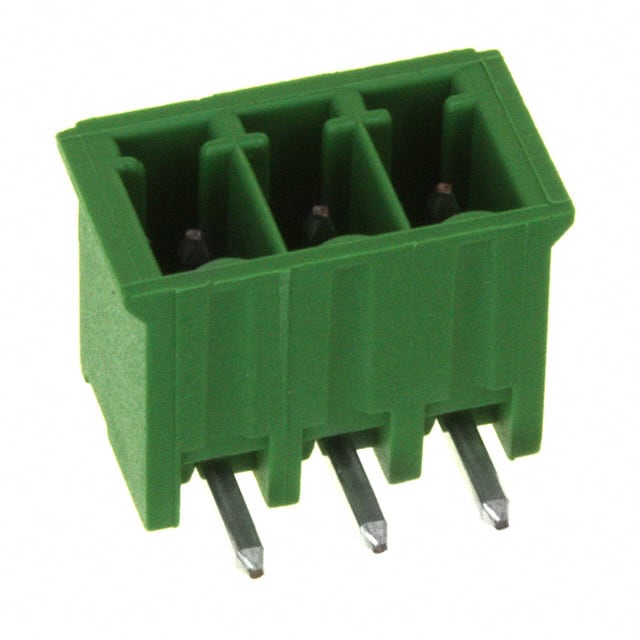

284512-3

Part Number 284512-3

Manufacturer TE Connectivity AMP Connectors

Description TERM BLOCK HDR 3POS 90DEG 3.5MM

Package -

Datasheet 284512-2.pdf 284391-3.pdf

Quantity

5185 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Terminal Blocks - Headers, Plugs and Sockets

Product Status

Active

Current - UL

11 A

Wire Strip Length

Series

Buchanan

Number of Positions

Color

Green

Mfr

TE Connectivity AMP Connectors

Mounting Type

Through Hole

Voltage - UL

300 V

Current - IEC

Wire Gauge or Range - AWG

Operating Temperature

-40°C ~ 110°C

Contact Mating Finish

Tin

Housing Material

Polyamide (PA66), Nylon 6/6

Base Product Number

284512

Termination Style

Solder

Ingress Protection

Contact Material

Phosphor Bronze

Type

Header, Male Pins, Shrouded (4 Side)

Number of Levels

Wire Gauge or Range - mm²

Header Orientation

90°, Right Angle

Material Flammability Rating

UL94 V-0

Positions Per Level

Screw Size

Package

Bulk

Plug Wire Entry

Features

Insulation Height

0.287" (7.30mm)

Pitch

0.138" (3.50mm)

Torque - Screw

Contact Tail Length

0.134" (3.40mm)

Documents & Media

RESOURCE TYPE LINK

Datasheets

284512-2.pdf
284391-3.pdf
