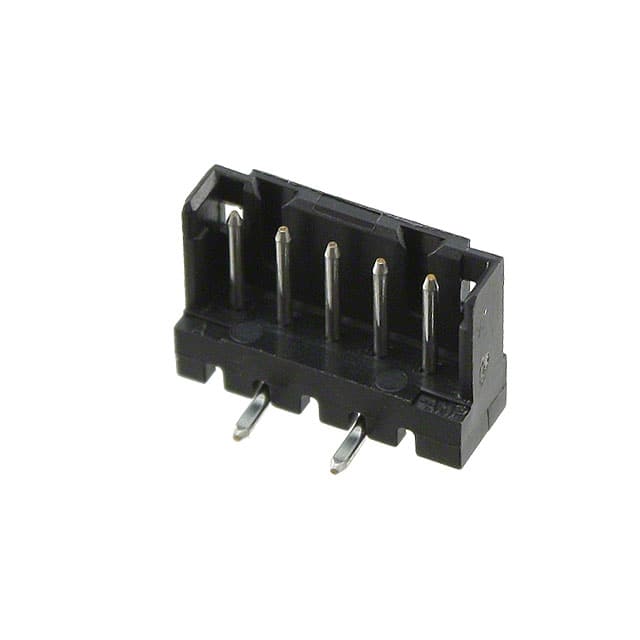

292172-5

Part Number 292172-5

Manufacturer TE Connectivity AMP Connectors

Description CONN HEADER SMD 5POS 2MM

Package -

Datasheet 292172-6.pdf

Quantity

93581 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Operating Temperature

Contact Material

Brass

Product Status

Active

Overall Contact Length

Contact Finish - Post

Tin

Ingress Protection

Material Flammability Rating

UL94 V-0

Current Rating (Amps)

Varies by Wire Gauge

Voltage Rating

125VAC

Mounting Type

Surface Mount

Termination

Solder

Contact Shape

Circular

Features

Package

Bag

Row Spacing - Mating

Contact Length - Post

Contact Finish - Mating

Tin

Mated Stacking Heights

Contact Length - Mating

0.177" (4.50mm)

Base Product Number

292172

Series

Pitch - Mating

0.079" (2.00mm)

Number of Rows

Style

Board to Cable/Wire

Connector Type

Header

Shrouding

Shrouded - 3 Wall

Insulation Height

0.307" (7.80mm)

Contact Finish Thickness - Mating

Applications

General Purpose

Mfr

TE Connectivity AMP Connectors

Number of Positions

Contact Finish Thickness - Post

Contact Type

Male Pin

Number of Positions Loaded

All

Fastening Type

Detent Lock

Insulation Material

Polyamide (PA6T), Nylon 6T, Glass Filled

Insulation Color

Black

Documents & Media

RESOURCE TYPE LINK

Datasheets

292172-6.pdf

Environmental Information

292172-5_3.pdf

3D Drawings

292172-5_2.pdf

HTML Datasheet

292172-5.pdf
