2SK4171

Part Number 2SK4171

Manufacturer onsemi

Description MOSFET N-CH 60V 100A TO220-3

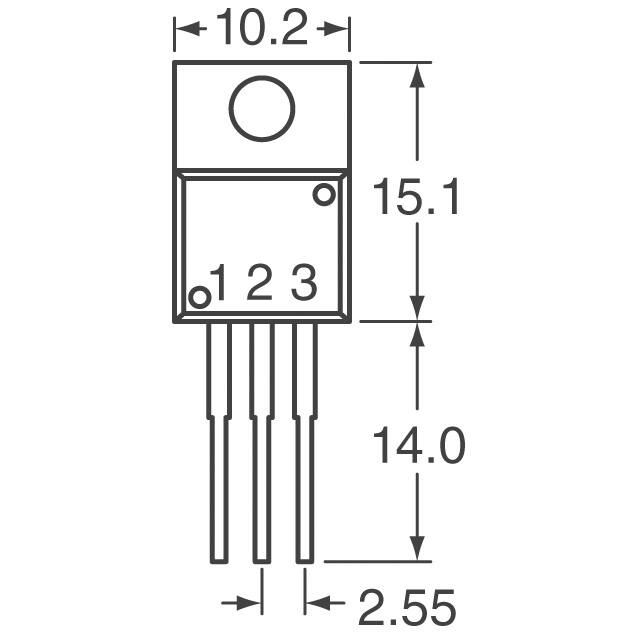

Package TO-220-3

Datasheet 2SK4171.pdf

Quantity

80451 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Discrete Semiconductor Products , Transistors - FETs, MOSFETs - Single

Supplier Device Package

TO-220-3

Product Status

Obsolete

Gate Charge (Qg) (Max) @ Vgs

135 nC @ 10 V

Input Capacitance (Ciss) (Max) @ Vds

6900 pF @ 20 V

Power Dissipation (Max)

1.75W (Ta), 75W (Tc)

Series

Drive Voltage (Max Rds On, Min Rds On)

4V, 10V

Mounting Type

Through Hole

Drain to Source Voltage (Vdss)

60 V

Package

Bulk

FET Feature

Mfr

onsemi

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Rds On (Max) @ Id, Vgs

7.2mOhm @ 50A, 10V

Current - Continuous Drain (Id) @ 25°C

100A (Ta)

Vgs(th) (Max) @ Id

Vgs (Max)

±20V

Operating Temperature

150°C (TJ)

Package / Case

TO-220-3

Base Product Number

2SK4171
