324

Part Number 324

Manufacturer Adafruit Industries LLC

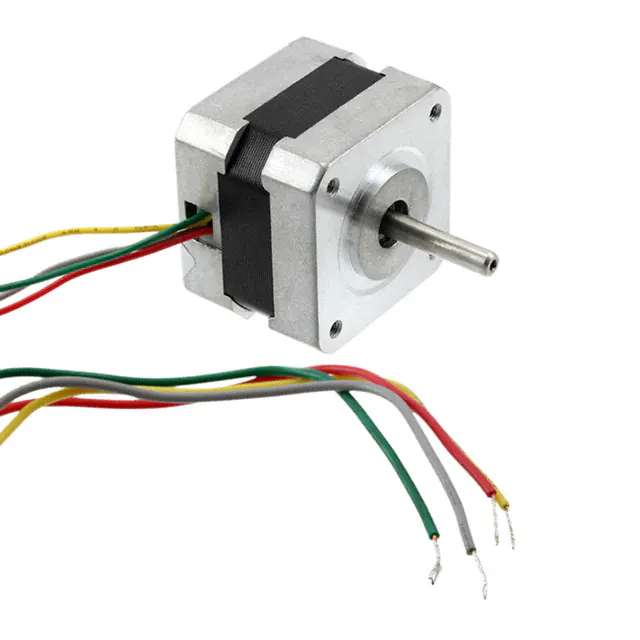

Description STEPPER MOTOR HYBRID BIPOLAR 12V

Package -

Datasheet adafruit-motor-shield-v2-for-arduino.pdf all-about-stepper-motors.pdf adafruit-motor-selection-guide.pdf

Quantity

55153 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Motors, Solenoids, Driver Boards/Modules , Stepper Motors

NEMA Frame Size

Voltage - Rated

12VDC

Features

Flatted Shaft

Step Angle

1.8°

Diameter - Shaft

0.197" (5.00mm)

Operating Temperature

0°C ~ 50°C

Series

Package

Bulk

Approval Agency

Weight

0.441 lb (200.03 g)

Coil Resistance

35 Ohms

Torque - Holding (oz-in / mNm)

28 / 197

Rotor Inertia

38gcm²

Product Status

Active

Steps per Revolution

200

Accuracy

Size / Dimension

Square - 1.654" x 1.654" (42.00mm x 42.00mm)

Mounting Hole Spacing

1.220" (30.99mm)

Type

Hybrid

Coil Type

Bipolar

Mfr

Adafruit Industries LLC

Current Rating (Amps)

350 mA

Termination Style

Wire Leads

Length - Shaft and Bearing

0.945" (24.00mm)
