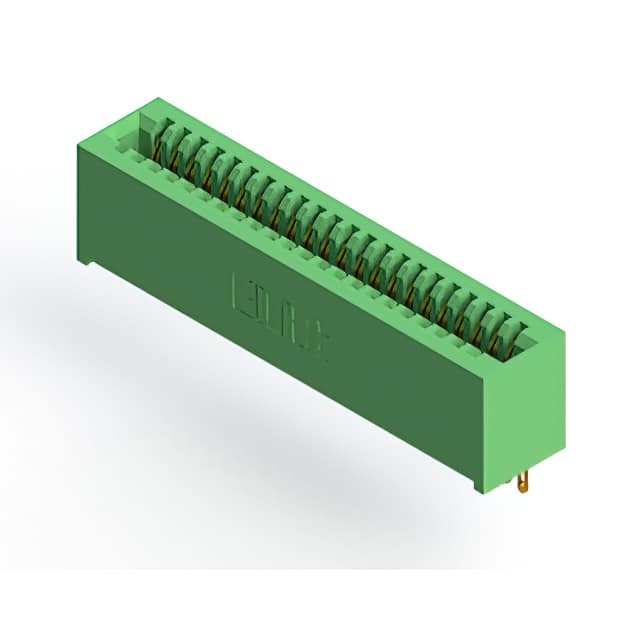

325-022-500-101

Part Number 325-022-500-101

Manufacturer EDAC Inc.

Description CONN EDGE SINGLE FML 22POS 0.100

Package -

Datasheet EDAC-325-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf 325-022-500-101_3.pdf

Quantity

63255 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Card Thickness

0.125" (3.18mm)

Read Out

Single

Termination

Solder Eyelet(s)

Card Type

Non Specified - Single Edge

Product Status

Active

Number of Rows

Contact Type

Cantilever

Material - Insulation

Diallyl Phthalate (DAP)

Mfr

EDAC Inc.

Flange Feature

Series

325

Contact Finish Thickness

10.0µin (0.25µm)

Base Product Number

325-022

Package

Bulk

Number of Positions/Bay/Row

Termination Rows

Number of Positions

Pitch

0.100" (2.54mm)

Features

Gender

Female

Contact Material

Copper Alloy

Color

Green

Operating Temperature

-65°C ~ 125°C

Mounting Type

Through Hole

Contact Finish

Gold

Documents & Media

RESOURCE TYPE LINK

Datasheets

EDAC-325-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf
325-022-500-101_3.pdf

Environmental Information

reach_219.pdf
516-020-520-462_2.pdf
