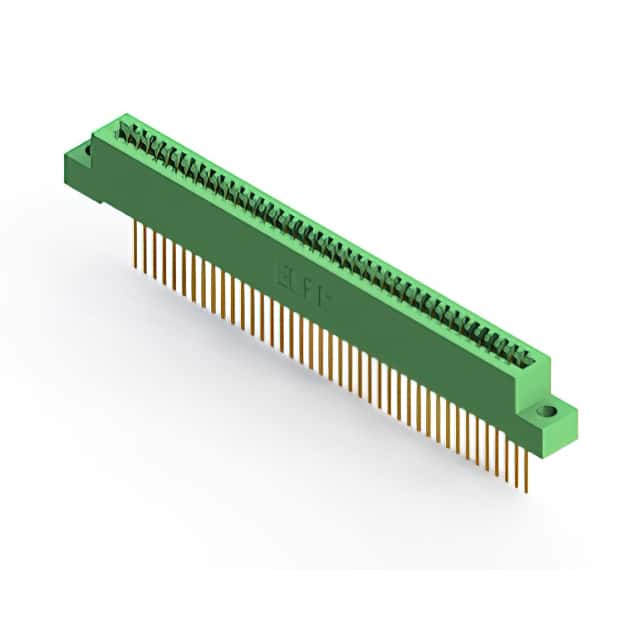

342-041-541-104

Part Number 342-041-541-104

Manufacturer EDAC Inc.

Description CONN EDGE SINGLE FML 41POS 0.100

Package -

Datasheet EDAC-342-392-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf 342-041-541-104.pdf

Quantity

91249 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Material - Insulation

Polyester Thermoplastic

Card Thickness

0.054" ~ 0.070" (1.37mm ~ 1.78mm)

Pitch

0.100" (2.54mm)

Contact Finish

Gold

Contact Finish Thickness

10.0µin (0.25µm)

Card Type

Non Specified - Single Edge

Termination

Wire Wrap

Mfr

EDAC Inc.

Package

Box

Features

Contact Material

Copper Alloy

Number of Positions/Bay/Row

Contact Type

Cantilever

Product Status

Active

Gender

Female

Number of Positions

Number of Rows

Termination Rows

Series

342

Color

Green

Flange Feature

Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia

Operating Temperature

-40°C ~ 105°C

Base Product Number

342-041

Read Out

Single

Mounting Type

Through Hole

Documents & Media

RESOURCE TYPE LINK

Datasheets

EDAC-342-392-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf
342-041-541-104.pdf

Environmental Information

516-020-520-462_2.pdf
reach_219.pdf

HTML Datasheet

342-041-541-104_3.pdf
342-026-527-202.pdf
