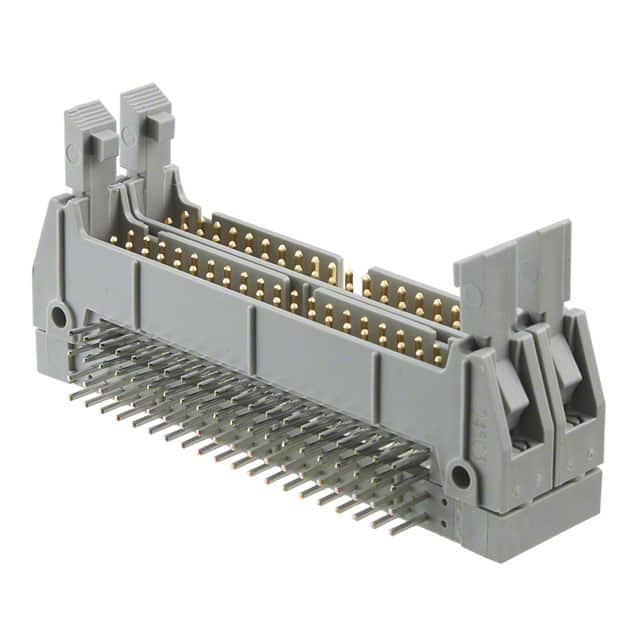

3432-L303

Part Number 3432-L303

Manufacturer 3M

Description CONN HEADER R/A 40POS 2.54MM

Package -

Datasheet 3mtm-100-in-4-wall-condo-hdr-100x-100ra-hightemp-ts0774.pdf 3m-interconnect-products-shortform-catalog.pdf

Quantity

43829 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Package

Bulk

Contact Finish - Post

Tin-Lead

Contact Shape

Square

Connector Type

Header, Stackable (2)

Insulation Height

0.660" (16.76mm)

Current Rating (Amps)

Contact Finish Thickness - Post

200.0µin (5.08µm)

Series

3000

Termination

Solder

Pitch - Mating

0.100" (2.54mm)

Row Spacing - Mating

0.100" (2.54mm)

Mounting Type

Through Hole, Right Angle

Ingress Protection

Product Status

Obsolete

Fastening Type

Latch Lock/Eject Hooks, Long

Contact Length - Mating

0.240" (6.10mm)

Voltage Rating

Applications

Style

Board to Board or Cable

Contact Length - Post

0.155" (3.94mm)

Insulation Color

Black

Number of Positions Loaded

All

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Features

Keying Slot, Mounting Flange

Mated Stacking Heights

Mfr

Contact Type

Male Pin

Insulation Material

Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled

Base Product Number

3432

Number of Rows

Contact Finish - Mating

Gold

Number of Positions

40, 40

Shrouding

Shrouded - 4 Wall

Overall Contact Length

Contact Material

Copper Alloy

Operating Temperature

-55°C ~ 105°C

Material Flammability Rating

UL94 V-0

Documents & Media

RESOURCE TYPE LINK

Datasheets

3mtm-100-in-4-wall-condo-hdr-100x-100ra-hightemp-ts0774.pdf
3m-interconnect-products-shortform-catalog.pdf

PCN Obsolescence/ EOL

3M_Transition_of_Manufacturing_Operations_12-Dec-2019.pdf

HTML Datasheet

3432-L303.pdf
