345-006-558-488 EDAC Inc.

Favorite Products

Request Free Samples

345-006-558-488

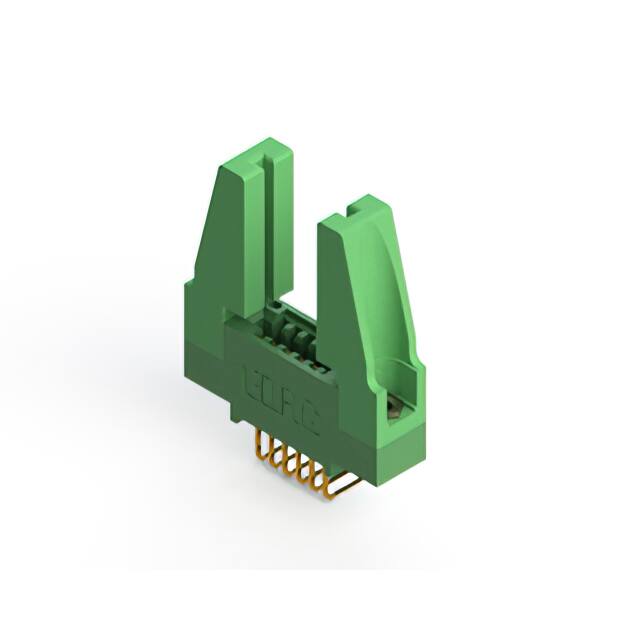

Part Number 345-006-558-488

Manufacturer EDAC Inc.

Description CONN EDGE SINGLE FML 6POS 0.100

Package -

Datasheet EDAC-345-395-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf 345-006-558-488.pdf

Quantity

17655 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Mounting Type

Through Hole, Right Angle

Flange Feature

Top Mount Opening, Threaded Insert, 4-40

Contact Finish Thickness

10.0µin (0.25µm)

Features

Card Guides

Termination

Wire Wrap

Number of Rows

Read Out

Single

Contact Finish

Gold

Card Thickness

0.054" ~ 0.070" (1.37mm ~ 1.78mm)

Contact Material

Copper Alloy

Contact Type

Cantilever

Card Type

Non Specified - Single Edge

Gender

Female

Color

Green

Number of Positions

Mfr

EDAC Inc.

Product Status

Active

Operating Temperature

-40°C ~ 105°C

Pitch

0.100" (2.54mm)

Termination Rows

Material - Insulation

Polyester Thermoplastic

Base Product Number

345-006

Series

345

Package

Box

Number of Positions/Bay/Row

Documents & Media

RESOURCE TYPE LINK

Datasheets

EDAC-345-395-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf
345-006-558-488.pdf

Environmental Information

516-020-520-462_2.pdf
reach_219.pdf

HTML Datasheet

345-009-558-104_2.pdf
345-006-558-488_2.pdf
