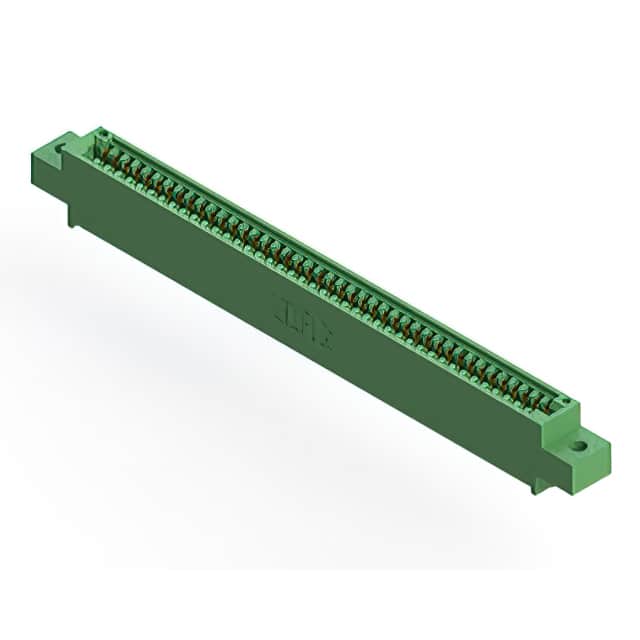

345-042-521-602

Part Number 345-042-521-602

Manufacturer EDAC Inc.

Description CONN EDGE SINGLE FML 42POS 0.100

Package -

Datasheet EDAC-345-395-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf 345-042-521-602.pdf

Quantity

8515 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Number of Rows

Flange Feature

Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia

Product Status

Active

Mfr

EDAC Inc.

Read Out

Single

Contact Finish

Gold

Pitch

0.100" (2.54mm)

Material - Insulation

Polyester Thermoplastic

Card Type

Non Specified - Single Edge

Card Thickness

0.054" ~ 0.070" (1.37mm ~ 1.78mm)

Termination Rows

Series

345

Package

Box

Operating Temperature

-40°C ~ 105°C

Features

Contact Finish Thickness

10.0µin (0.25µm)

Number of Positions

Termination

Solder

Mounting Type

Through Hole

Gender

Female

Number of Positions/Bay/Row

Color

Green

Base Product Number

345-042

Contact Material

Copper Alloy

Contact Type

Cantilever

Documents & Media

RESOURCE TYPE LINK

Environmental Information

516-020-520-462_2.pdf
reach_219.pdf

Datasheets

EDAC-345-395-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf
345-042-521-602.pdf

HTML Datasheet

345-009-558-104_2.pdf
