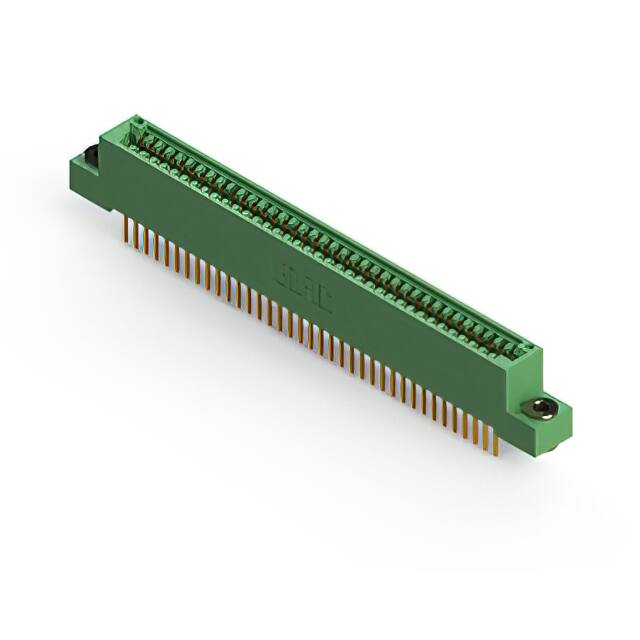

345-074-541-203

Part Number 345-074-541-203

Manufacturer EDAC Inc.

Description CONN EDGE DUAL FMALE 74POS 0.100

Package -

Datasheet EDAC-345-395-Series-Card-Edge-Connectors-English-Ordering-Guide.pdf 345-074-541-203.pdf

Quantity

5137 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Contact Finish

Gold

Card Thickness

0.054" ~ 0.070" (1.37mm ~ 1.78mm)

Color

Green

Flange Feature

Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia

Gender

Female

Material - Insulation

Polyester Thermoplastic

Pitch

0.100" (2.54mm)

Features

Operating Temperature

-40°C ~ 105°C

Termination

Wire Wrap

Contact Material

Copper Alloy

Contact Finish Thickness

10.0µin (0.25µm)

Product Status

Active

Number of Positions/Bay/Row

Number of Rows

Mounting Type

Through Hole

Contact Type

Cantilever

Mfr

EDAC Inc.

Series

345

Termination Rows

Package

Box

Card Type

Non Specified - Dual Edge

Number of Positions

Read Out

Dual

Base Product Number

345-074
