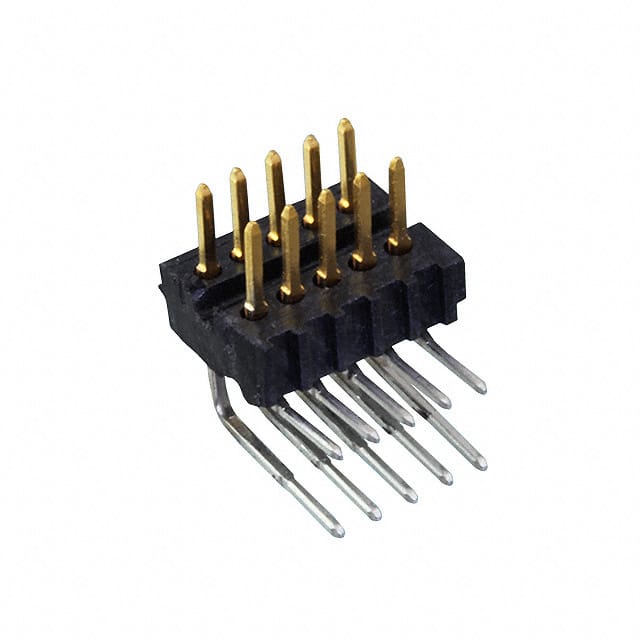

5-104118-3

Part Number 5-104118-3

Manufacturer TE Connectivity AMP Connectors

Description CONN HEADER R/A 10POS 1.27MM

Package -

Datasheet 1-104118-6.pdf

Quantity

35029 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Contact Length - Mating

0.125" (3.18mm)

Insulation Height

0.216" (5.49mm)

Current Rating (Amps)

Ingress Protection

Mfr

TE Connectivity AMP Connectors

Series

AMPMODU System 50

Contact Type

Male Pin

Operating Temperature

-65°C ~ 105°C

Insulation Color

Black

Number of Rows

Overall Contact Length

Number of Positions Loaded

All

Style

Board to Board or Cable

Shrouding

Unshrouded

Mated Stacking Heights

Row Spacing - Mating

0.100" (2.54mm)

Contact Length - Post

0.100" (2.54mm)

Contact Material

Copper Alloy

Contact Finish Thickness - Post

150.0µin (3.81µm)

Mounting Type

Through Hole, Right Angle

Contact Finish - Post

Tin

Base Product Number

104118

Number of Positions

Package

Tube

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Insulation Material

Thermoplastic

Material Flammability Rating

UL94 V-0

Pitch - Mating

0.050" (1.27mm)

Fastening Type

Push-Pull

Contact Finish - Mating

Gold

Voltage Rating

30VAC

Product Status

Active

Connector Type

Header

Termination

Solder

Contact Shape

Circular

Features

Applications

Automotive, General Purpose, Medical, Telecommunications

Documents & Media

RESOURCE TYPE LINK

Datasheets

1-104118-6.pdf

Environmental Information

5-104118-3.pdf

PCN Other

E-14-018034(2).pdf

PCN Design/Specification

E-16-016345(2).pdf
P-17-015214(2).pdf
