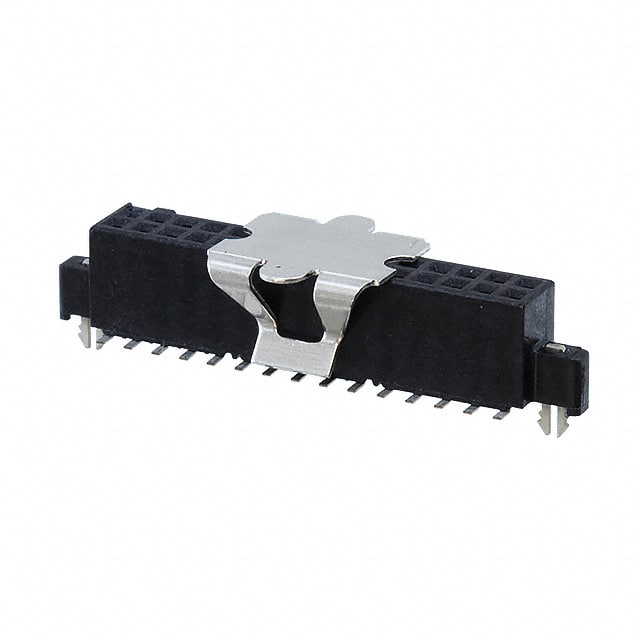

5-147384-3

Part Number 5-147384-3

Manufacturer TE Connectivity AMP Connectors

Description CONN RCPT 30POS 0.05 GOLD SMD

Package -

Datasheet 147384-2.pdf

Quantity

38267 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Insulation Material

Liquid Crystal Polymer (LCP)

Connector Type

Receptacle

Contact Finish Thickness - Post

150.0µin (3.81µm)

Termination

Solder

Number of Rows

Style

Board to Board or Cable

Operating Temperature

-65°C ~ 105°C

Features

Board Lock, Pick and Place

Base Product Number

147384

Package

Tape & Reel (TR)^^Cut Tape (CT)

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Ingress Protection

Current Rating (Amps)

0.5A per Contact

Contact Shape

Square

Voltage Rating

30VAC

Contact Finish - Mating

Gold

Contact Type

Female Socket

Number of Positions Loaded

All

Row Spacing - Mating

0.050" (1.27mm)

Mounting Type

Surface Mount

Insulation Color

Black

Insulation Height

0.187" (4.75mm)

Material Flammability Rating

UL94 V-0

Mated Stacking Heights

6.35mm, 8.13mm, 9.91mm

Contact Material

Copper Alloy

Series

AMPMODU 50/50 Grid

Product Status

Active

Number of Positions

Pitch - Mating

0.050" (1.27mm)

Fastening Type

Push-Pull

Contact Length - Post

Contact Finish - Post

Tin

Applications

Mfr

TE Connectivity AMP Connectors

Documents & Media

RESOURCE TYPE LINK

Datasheets

147384-2.pdf

Environmental Information

5-147384-3_4.pdf
