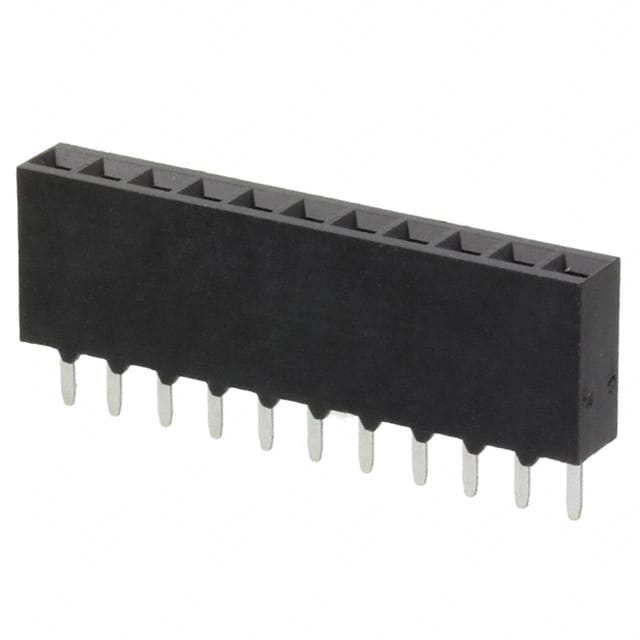

534237-9

Part Number 534237-9

Manufacturer TE Connectivity AMP Connectors

Description CONN RCPT 11POS 0.1 GOLD PCB

Package -

Datasheet 534237-6.pdf

Quantity

55265 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Contact Shape

Square

Contact Finish - Mating

Gold

Style

Board to Board or Cable

Number of Positions

Mounting Type

Through Hole

Base Product Number

534237

Mfr

TE Connectivity AMP Connectors

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Mated Stacking Heights

Features

Applications

Contact Material

Phosphor Bronze

Product Status

Active

Connector Type

Receptacle

Number of Positions Loaded

All

Series

AMPMODU Mod IV

Pitch - Mating

0.100" (2.54mm)

Insulation Color

Black

Contact Length - Post

0.115" (2.92mm)

Material Flammability Rating

Operating Temperature

-65°C ~ 125°C

Ingress Protection

Current Rating (Amps)

Termination

Solder

Insulation Height

0.340" (8.64mm)

Contact Finish - Post

Tin-Lead

Number of Rows

Row Spacing - Mating

Insulation Material

Polyester, Glass Filled

Package

Tube

Contact Type

Female Socket

Fastening Type

Push-Pull

Contact Finish Thickness - Post

150.0µin (3.81µm)

Voltage Rating

Documents & Media

RESOURCE TYPE LINK

Datasheets

534237-6.pdf

3D Drawings

534237-9_3.pdf

HTML Datasheet

5-534237-3_5.pdf
