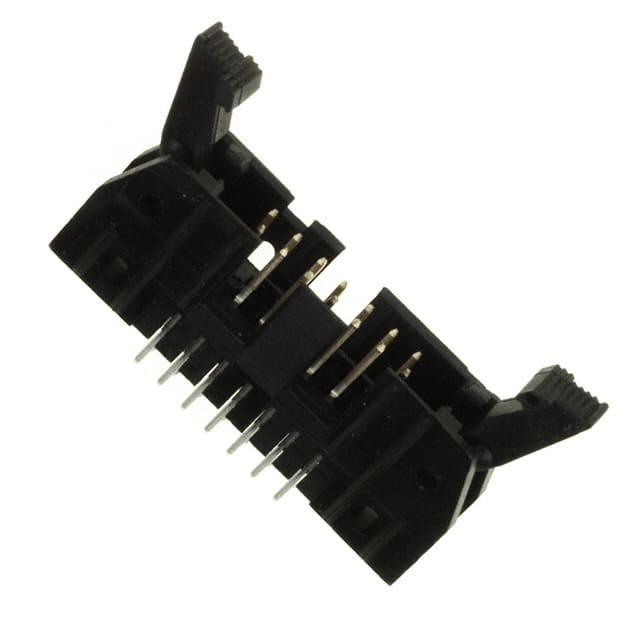

5499374-2

Part Number 5499374-2

Manufacturer TE Connectivity AMP Connectors

Description CONN HEADER VERT 14POS 2.54MM

Package -

Datasheet 5499374-9.pdf

Quantity

37526 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Contact Finish - Mating

Gold or Gold-Palladium

Base Product Number

5499374

Contact Material

Operating Temperature

-65°C ~ 105°C

Shrouding

Shrouded - 4 Wall

Contact Finish Thickness - Post

100.0µin (2.54µm)

Mfr

TE Connectivity AMP Connectors

Package

Tray

Connector Type

Header

Features

Keying Slot, Mounting Flange

Pitch - Mating

0.100" (2.54mm)

Termination

Solder

Contact Length - Mating

0.240" (6.10mm)

Contact Shape

Square

Ingress Protection

Material Flammability Rating

UL94 V-0

Number of Positions Loaded

All

Fastening Type

Latch Lock/Eject Hooks, Short

Contact Length - Post

0.155" (3.94mm)

Contact Finish - Post

Tin

Series

AMP-Latch

Number of Positions

Overall Contact Length

0.684" (17.37mm)

Current Rating (Amps)

1A per Contact

Mated Stacking Heights

Contact Type

Male Pin

Row Spacing - Mating

0.100" (2.54mm)

Contact Finish Thickness - Mating

30.0µin (0.76µm)

Insulation Color

Black

Product Status

Active

Voltage Rating

250VAC

Style

Board to Cable/Wire

Mounting Type

Through Hole

Insulation Material

Number of Rows

Insulation Height

0.549" (13.94mm)

Applications

Documents & Media

RESOURCE TYPE LINK

Datasheets

5499374-9.pdf

HTML Datasheet

5499374-2_5.pdf

Product Drawings

5499374-2_3.pdf

Environmental Information

5499374-2_4.pdf
