61301021021
61301021021
Favorite Products
Request Free Samples

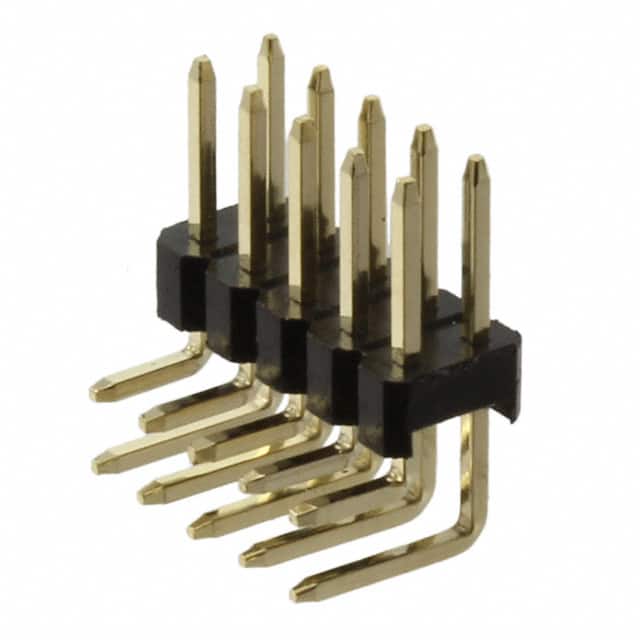

61301021021
61301021021
Würth Elektronik
CONN HEADER R/A 10POS 2.54MM
-
6130xx21021.pdf
46002 In Stock
Fill out the form and we will contact you shortly.
Contact Information
Please send RFQ and we will contact you shortly.
*
*
*
*
*
Product Attributes
Type PARAMETERS
Categories
Connectors, Interconnects , Rectangular Connectors , Headers, Male Pins
Overall Contact Length
-
Contact Finish - Mating
Gold
Connector Type
Header
Series
WR-PHD
Contact Type
Male Pin
Mounting Type
Through Hole, Right Angle
Termination
Solder
Contact Finish - Post
-
Pitch - Mating
0.100" (2.54mm)
Contact Finish Thickness - Post
-
Contact Length - Post
0.118" (3.00mm)
Contact Shape
Square
Contact Finish Thickness - Mating
-
Features
-
Applications
-
Mfr
Würth Elektronik
Number of Positions Loaded
All
Style
Board to Board or Cable
Ingress Protection
-
Package
Bulk
Product Status
Active
Number of Positions
10
Row Spacing - Mating
0.100" (2.54mm)
Contact Material
Copper Alloy
Insulation Color
Black
Mated Stacking Heights
-
Shrouding
Unshrouded
Insulation Height
0.200" (5.08mm)
Operating Temperature
-40°C ~ 105°C
Current Rating (Amps)
3A
Fastening Type
Push-Pull
Insulation Material
Polyamide (PA6T), Nylon 6T
Voltage Rating
250V
Number of Rows
2
Contact Length - Mating
0.236" (6.00mm)
Material Flammability Rating
UL94 V-0
Documents & Media
RESOURCE TYPE LINK
Environmental Information
Certificate_of_Compliance_ROHS.pdf
3D Drawings
3D_PHD_2_54_THT_ANGLED_DUAL_PIN_HEADER_6130XX21021.pdf
PCN Design/Specification
ConPSHD_150225.pdf
ConPSHD_150225_plastic-change.pdf
HTML Datasheet
61301221021.pdf
Datasheets
6130xx21021.pdf
PCN Other
PCN_Label_20220317_22-Dec-2021.pdf
