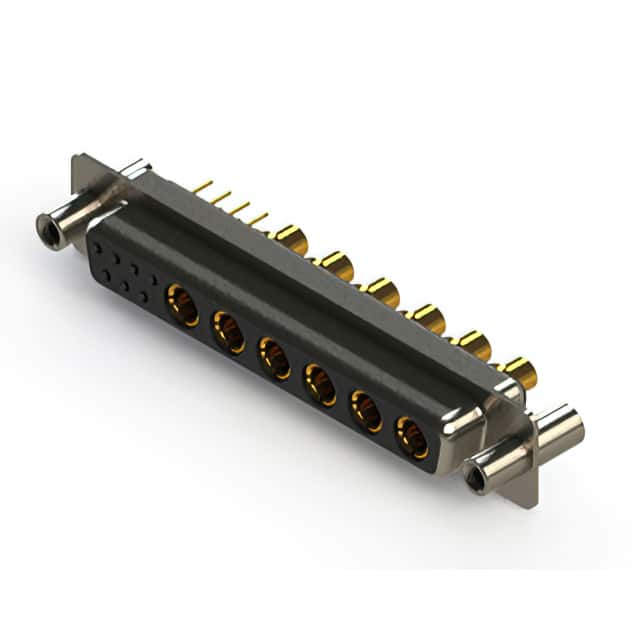

628-13W6224-4T4

Part Number 628-13W6224-4T4

Manufacturer EDAC Inc.

Description CONN D-SUB RCPT 13POS VERT SLDR

Package -

Datasheet EDAC-627C-628C-Series-Power-Combo-D-sub-Connectors-English-Ordering-Guide.pdf 628-13W6224-4T4.pdf

Quantity

73304 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Number of Rows

Flange Feature

Board Side (4-40); Mating Side (4-40)

Contact Finish

Gold

Wire Gauge

Series

628-C

Contact Type

Signal and Power

Dielectric Material

Polyester Thermoplastic

Termination

Solder

Material Flammability Rating

UL94 V-0

Contact Material

Copper Alloy

Mounting Type

Through Hole

Number of Positions

13 (7 + 6 Power)

Shell Material, Finish

Steel, Tin Plated

Ingress Protection

Product Status

Active

Base Product Number

628-13W

Mfr

EDAC Inc.

Shell Size, Connector Layout

4 (DC, C) - 13W6

Voltage Rating

125V

Features

Shielded

Contact Form

Current Rating (Amps)

5A, 40A

Backset Spacing

Package

Tray

Connector Style

D-Sub, Combo

Connector Type

Receptacle, Female Sockets

Contact Finish Thickness

30.0µin (0.76µm)

Color

Black

Operating Temperature

-55°C ~ 125°C

Documents & Media

RESOURCE TYPE LINK

Datasheets

EDAC-627C-628C-Series-Power-Combo-D-sub-Connectors-English-Ordering-Guide.pdf
628-13W6224-4T4.pdf

Environmental Information

516-020-520-462_2.pdf
reach_219.pdf
