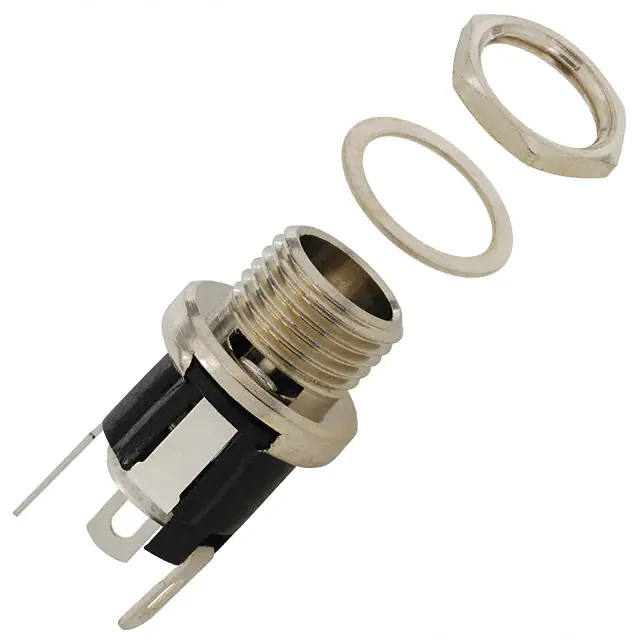

712A

Part Number 712A

Manufacturer Switchcraft Inc.

Description CONN PWR JACK 2.5X5.5MM SOLDER

Package -

Datasheet 712A-722A-732A_CD.pdf

Quantity

90682 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Barrel - Power Connectors

Body Color

Black

Mounting Type

Panel Mount

Package

Bulk

Features

Mounting Hardware, Thread Lock

Termination

Solder Eyelet(s)

Current Rating (Amps)

5 A

Contact Material - Plating

Silver

Product Status

Active

Internal Switch(s)

Single Switch, Normally Closed

Insulation Color

Voltage - Rated

48V

Ingress Protection

Thread Size

Series

Connector Type

Jack

Gender

Male

Material Flammability Rating

Includes

3 pcs - 1 Connector, 1 Nut, 1 Washer

Contact Material

Copper Alloy

Mating Length/Depth

0.374" (9.50mm)

Mfr

Switchcraft Inc.

Number of Positions/Contacts

2 Conductors, 3 Contacts

Mounting Feature

Bulkhead - Front Side Nut

Actual Diameter

0.098" (2.50mm ID), 0.217" (5.50mm OD)

Operating Temperature

Industry Recognized Mating Diameter

2.50mm ID (0.098"), 5.50mm OD (0.217")

Shielding

Unshielded

Body Material

Copper Alloy

Housing Material

Thermoplastic

Documents & Media

RESOURCE TYPE LINK

Datasheets

712A-722A-732A_CD.pdf

Environmental Information

RoHS_2015_863_EU_CoC_General_Statement_Switchcraft_20190722.pdf
