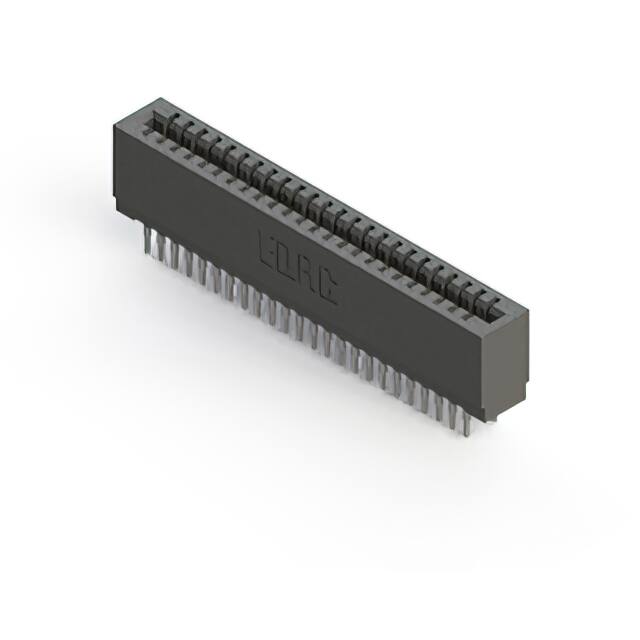

725-048-541-201

Part Number 725-048-541-201

Manufacturer EDAC Inc.

Description CONN EDGE DUAL FMALE 48POS 0.100

Package -

Datasheet EDAC-725-Series-Pressfit-Card-Edge-Connectors-English-Ordering-Guide.pdf 725-048-541-201-EDAC-Ultra-Mate-Card-Edge-Connector.pdf

Quantity

94236 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Connectors, Interconnects , Card Edge Connectors - Edgeboard Connectors

Series

725

Product Status

Active

Read Out

Dual

Termination

Press-Fit, Wire Wrap

Mfr

EDAC Inc.

Card Type

Non Specified - Dual Edge

Number of Positions

Features

Contact Type

Cantilever

Material - Insulation

Polyester Thermoplastic

Termination Rows

Mounting Type

Through Hole

Package

Box

Card Thickness

0.054" ~ 0.070" (1.37mm ~ 1.78mm)

Contact Material

Copper Alloy

Gender

Female

Number of Positions/Bay/Row

Number of Rows

Color

Black

Pitch

0.100" (2.54mm)

Contact Finish

Gold

Operating Temperature

-40°C ~ 105°C

Contact Finish Thickness

30.0µin (0.76µm)

Flange Feature

Base Product Number

725-048
