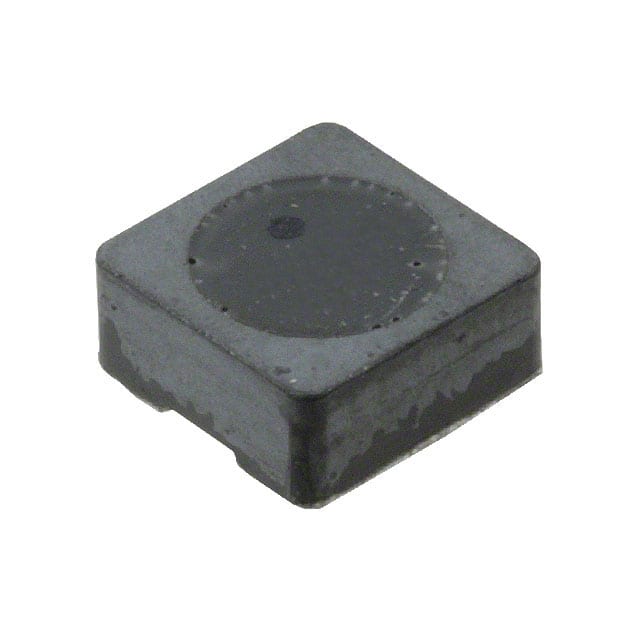

744053270

Part Number 744053270

Manufacturer Würth Elektronik

Description FIXED IND 27UH 1.05A 160MOHM SMD

Package -

Datasheet 744053270.pdf

Quantity

35629 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

Q @ Freq

Package / Case

2323 (5858 Metric)

Supplier Device Package

Height - Seated (Max)

0.118" (3.00mm)

Type

Drum Core, Wirewound

Inductance

27 µH

Mounting Type

Surface Mount

Series

WE-TPC

Current Rating (Amps)

1.05 A

Shielding

Shielded

Ratings

Inductance Frequency - Test

100 kHz

Package

Tape & Reel (TR)^^Cut Tape (CT)

Tolerance

±30%

Current - Saturation (Isat)

800mA

Frequency - Self Resonant

15MHz

Product Status

Active

DC Resistance (DCR)

160mOhm Max

Operating Temperature

-40°C ~ 125°C

Size / Dimension

0.228" L x 0.228" W (5.80mm x 5.80mm)

Mfr

Würth Elektronik

Material - Core

Ferrite

Documents & Media

RESOURCE TYPE LINK

Environmental Information

Certificate_of_Compliance_ROHS.pdf

Datasheets

744053270.pdf

PCN Other

PCN_Label_20220317_22-Dec-2021.pdf

HTML Datasheet

744053270-1_2.pdf

PCN Design/Specification

PCN_IndTPC_20180305.pdf
PCN_IndTPC_20180123.pdf
