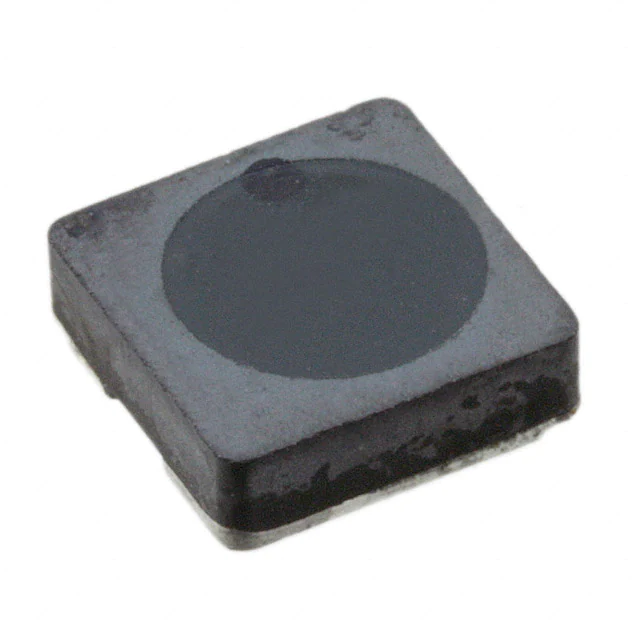

744062003

Part Number 744062003

Manufacturer Würth Elektronik

Description FIXED IND 3.3UH 2.8A 32 MOHM SMD

Package -

Datasheet 744062003.pdf

Quantity

24007 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

DC Resistance (DCR)

32mOhm Max

Size / Dimension

0.268" L x 0.268" W (6.80mm x 6.80mm)

Package

Tape & Reel (TR)^^Cut Tape (CT)

Product Status

Active

Tolerance

±30%

Current - Saturation (Isat)

2.5A

Inductance Frequency - Test

100 kHz

Inductance

3.3 µH

Shielding

Shielded

Current Rating (Amps)

2.8 A

Ratings

Supplier Device Package

Operating Temperature

-40°C ~ 125°C

Mfr

Würth Elektronik

Package / Case

2727 (6868 Metric)

Height - Seated (Max)

0.098" (2.50mm)

Material - Core

Ferrite

Frequency - Self Resonant

55MHz

Mounting Type

Surface Mount

Series

WE-TPC

Type

Drum Core, Wirewound

Q @ Freq

Documents & Media

RESOURCE TYPE LINK

PCN Packaging

PCN_SWL_Label_20201201.pdf

HTML Datasheet

744062003-1.pdf

PCN Design/Specification

PCN_IndTPC_20180305.pdf
PCN_IndTPC_20180123.pdf

PCN Other

PCN_Label_20220317_22-Dec-2021.pdf

Environmental Information

Certificate_of_Compliance_ROHS.pdf

Datasheets

744062003.pdf
