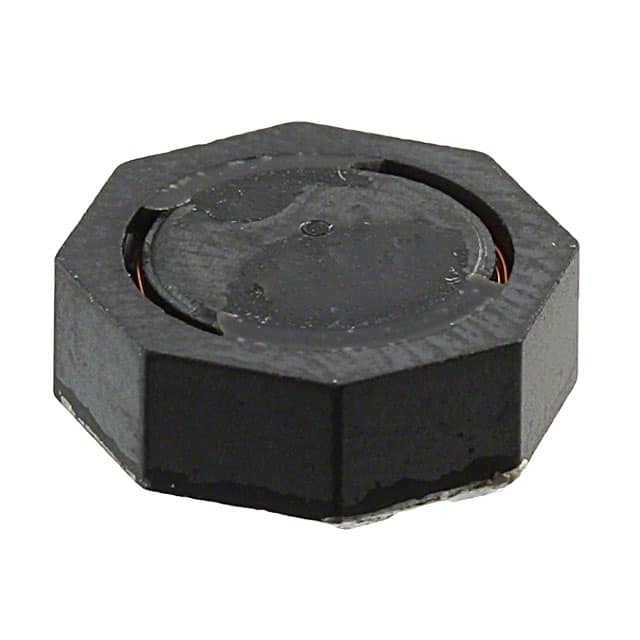

744066101

Part Number 744066101

Manufacturer Würth Elektronik

Description FIXED IND 100UH 1.2A 300MOHM SMD

Package -

Datasheet 744066101.pdf

Quantity

29075 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

Frequency - Self Resonant

6MHz

Type

Drum Core, Wirewound

Current - Saturation (Isat)

1.2A

Series

WE-TPC

Package

Tape & Reel (TR)^^Cut Tape (CT)

Size / Dimension

0.394" L x 0.394" W (10.00mm x 10.00mm)

Q @ Freq

Inductance Frequency - Test

100 kHz

Base Product Number

744066

Shielding

Shielded

Ratings

Inductance

100 µH

Current Rating (Amps)

1.2 A

Height - Seated (Max)

0.161" (4.10mm)

Mfr

Würth Elektronik

Product Status

Active

Material - Core

Ferrite

DC Resistance (DCR)

300mOhm Max

Tolerance

±30%

Operating Temperature

-40°C ~ 125°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Documents & Media

RESOURCE TYPE LINK

PCN Packaging

PCN_SWL_Label_20201201.pdf

PCN Other

PCN_Label_20220317_22-Dec-2021.pdf

HTML Datasheet

744066101-1.pdf

Environmental Information

Certificate_of_Compliance_ROHS.pdf

Datasheets

744066101.pdf
