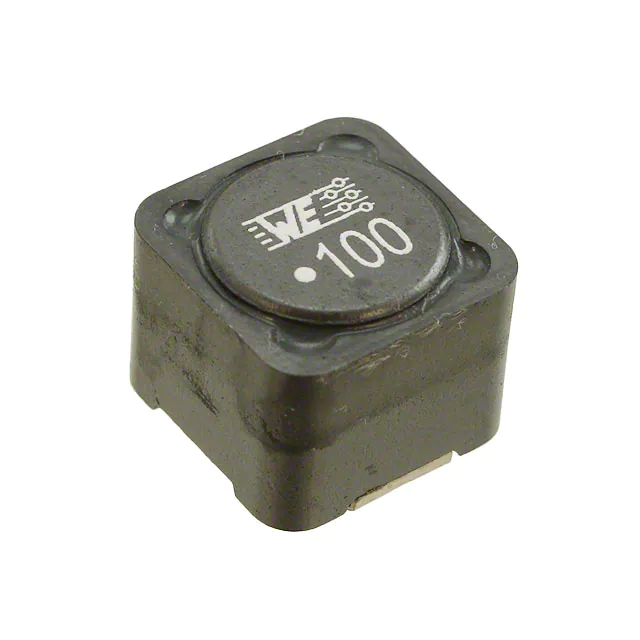

7447709100

Part Number 7447709100

Manufacturer Würth Elektronik

Description FIXED IND 10UH 7.1A 21 MOHM SMD

Package -

Datasheet 7447709100.pdf

Quantity

43077 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

Frequency - Self Resonant

21MHz

Package

Tape & Reel (TR)^^Cut Tape (CT)

Tolerance

±20%

Series

WE-PD

DC Resistance (DCR)

21mOhm Max

Product Status

Active

Current - Saturation (Isat)

10.5A

Mounting Type

Surface Mount

Package / Case

Nonstandard

Type

Drum Core, Wirewound

Supplier Device Package

Size / Dimension

0.472" L x 0.472" W (12.00mm x 12.00mm)

Height - Seated (Max)

0.394" (10.00mm)

Mfr

Würth Elektronik

Material - Core

Ferrite

Inductance

10 µH

Current Rating (Amps)

7.1 A

Shielding

Shielded

Q @ Freq

Ratings

AEC-Q200

Inductance Frequency - Test

1 kHz

Operating Temperature

-40°C ~ 125°C
