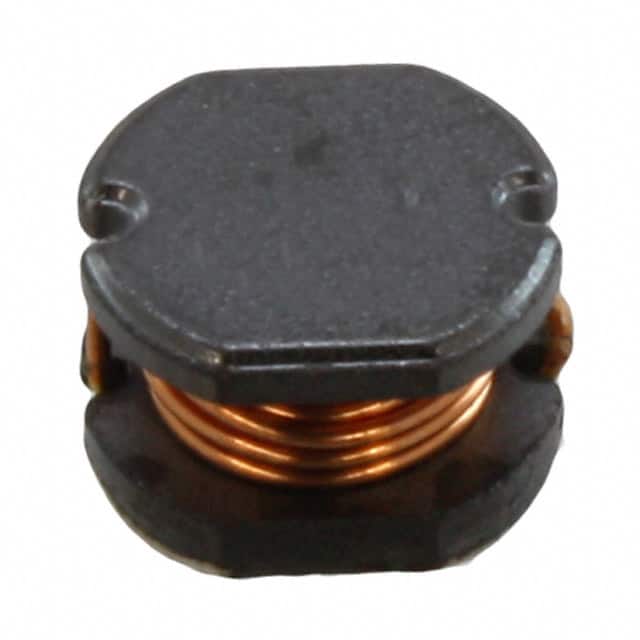

744775115

Part Number 744775115

Manufacturer Würth Elektronik

Description FIXED IND 15UH 1.93A 90 MOHM SMD

Package -

Datasheet 744775115.pdf

Quantity

23664 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Inductors, Coils, Chokes , Fixed Inductors

DC Resistance (DCR)

90mOhm Max

Current Rating (Amps)

1.93 A

Material - Core

Ferrite

Current - Saturation (Isat)

2.23A

Mfr

Würth Elektronik

Package

Tape & Reel (TR)^^Cut Tape (CT)

Ratings

Package / Case

Nonstandard

Shielding

Unshielded

Mounting Type

Surface Mount

Height - Seated (Max)

0.217" (5.50mm)

Inductance

15 µH

Size / Dimension

0.307" L x 0.276" W (7.80mm x 7.00mm)

Product Status

Active

Frequency - Self Resonant

20MHz

Q @ Freq

Supplier Device Package

Type

Drum Core, Wirewound

Tolerance

±10%

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

10 kHz

Series

WE-PD2

Documents & Media

RESOURCE TYPE LINK

Datasheets

744775115.pdf

PCN Other

PCN_Label_20220317_22-Dec-2021.pdf

PCN Packaging

PCN_SWL_Label_20201201.pdf

HTML Datasheet

744775115_3.pdf

Environmental Information

Certificate_of_Compliance_ROHS.pdf
