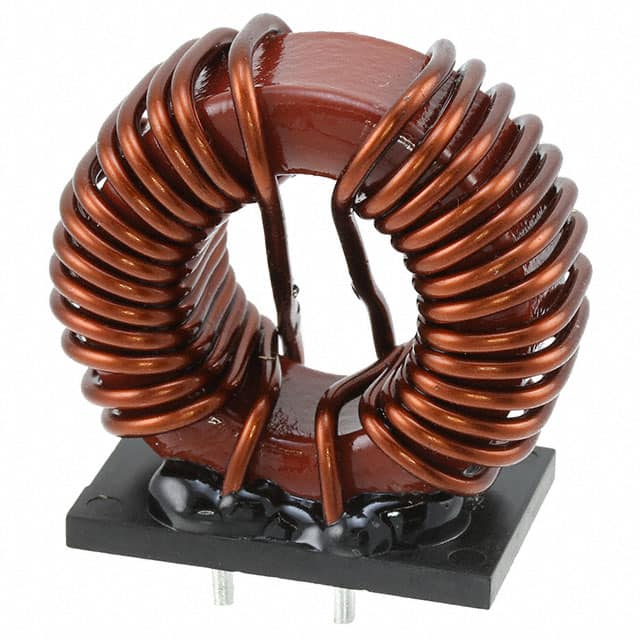

7448262013

Part Number 7448262013

Manufacturer Würth Elektronik

Description CMC 1.3MH 20A 2LN TH

Package -

Datasheet 7448262013.pdf

Quantity

82566 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Filters , Common Mode Chokes

Size / Dimension

1.713" L x 0.925" W (43.50mm x 23.50mm)

Voltage Rating - AC

250V

Features

Product Status

Active

Package

Tray

Voltage Rating - DC

Series

WE-CMB

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

1.3 mH @ 10 kHz

Package / Case

Vertical, 4 PC Pin

Mfr

Würth Elektronik

Current Rating (Max)

20A

Operating Temperature

-40°C ~ 125°C

Mounting Type

Through Hole

DC Resistance (DCR) (Max)

6.2mOhm

Ratings

Approval Agency

Height (Max)

1.693" (43.00mm)

Documents & Media

RESOURCE TYPE LINK

Datasheets

7448262013.pdf

PCN Packaging

IndCMB_20160301_Material_Label.pdf

PCN Assembly/Origin

PCN_IndCMB_20191216.pdf

Environmental Information

Certificate_of_Compliance_ROHS.pdf

HTML Datasheet

7448262013_2.pdf

PCN Other

PCN_Label_20220317_22-Dec-2021.pdf
