796863-2

Part Number 796863-2

Manufacturer TE Connectivity AMP Connectors

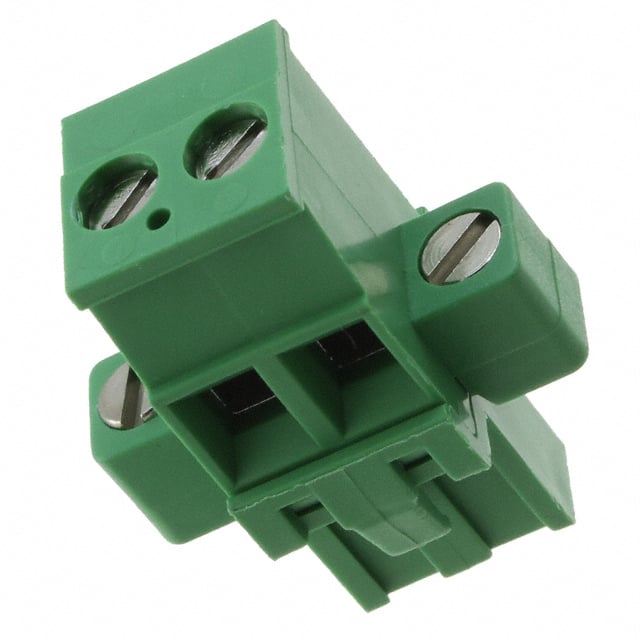

Description TERM BLOCK PLUG 2POS 5.08MM

Package -

Datasheet 796863-4.pdf

Quantity

32308 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Material Flammability Rating

UL94 V-0

Torque - Screw

0.79 Nm (7.0 Lb-In)

Mfr

TE Connectivity AMP Connectors

Series

Buchanan

Termination Style

Screw - Rising Cage Clamp

Current - IEC

Operating Temperature

-40°C ~ 110°C

Number of Positions

Ingress Protection

Features

Mating Flange, Retention Latches (Wire Side)

Contact Material

Phosphor Bronze

Contact Tail Length

Insulation Height

0.984" (25.00mm)

Contact Mating Finish

Tin

Package

Bulk

Number of Levels

Pitch

0.200" (5.08mm)

Header Orientation

Voltage - UL

300 V

Wire Strip Length

6-7.5mm

Product Status

Active

Positions Per Level

Wire Gauge or Range - mm²

Screw Size

Base Product Number

796863

Plug Wire Entry

90°

Mounting Type

Free Hanging (In-Line)

Wire Gauge or Range - AWG

12-30 AWG

Color

Green

Type

Plug, Female Sockets

Current - UL

15 A

Housing Material

Polyamide (PA66), Nylon 6/6

Documents & Media

RESOURCE TYPE LINK

Datasheets

796863-4.pdf

3D Drawings

796863-2.pdf

HTML Datasheet

796863-7.pdf
