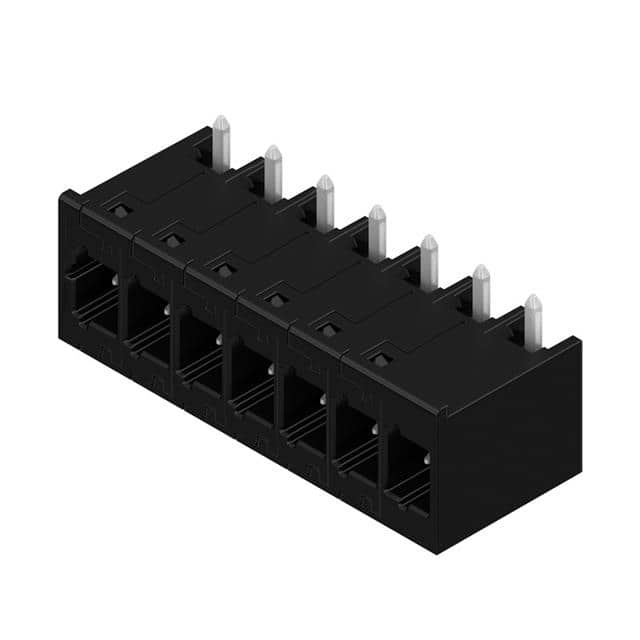

8000072510

Part Number 8000072510

Manufacturer Weidmüller

Description PCB PLUG-IN CONNECTOR (BOARD CON

Package -

Datasheet

Quantity

23538 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Contact Material

Copper Alloy

Voltage - IEC

400 V

Number of Positions

Mounting Type

Through Hole

Color

Black

Contact Mating Finish

Tin

Ingress Protection

IP20

Wire Strip Length

Mfr

Weidmüller

Positions Per Level

Number of Levels

Pitch

0.197" (5.00mm)

Current - IEC

26.8A

Material Flammability Rating

UL94 V-0

Features

Series

Omnimate 4.0 MHS

Product Status

Active

Current - UL

14 A

Housing Material

Polyamide (PA9T), Nylon 9T

Contact Tail Length

0.126" (3.20mm)

Wire Gauge or Range - AWG

Operating Temperature

-50°C ~ 100°C

Plug Wire Entry

Package

Tube

Header Orientation

90°, Right Angle

Voltage - UL

300 V

Screw Size

Torque - Screw

Type

Header, Male Pins, Shrouded (4 Side)

Termination Style

Solder

Wire Gauge or Range - mm²

Insulation Height

0.469" (11.90mm)
