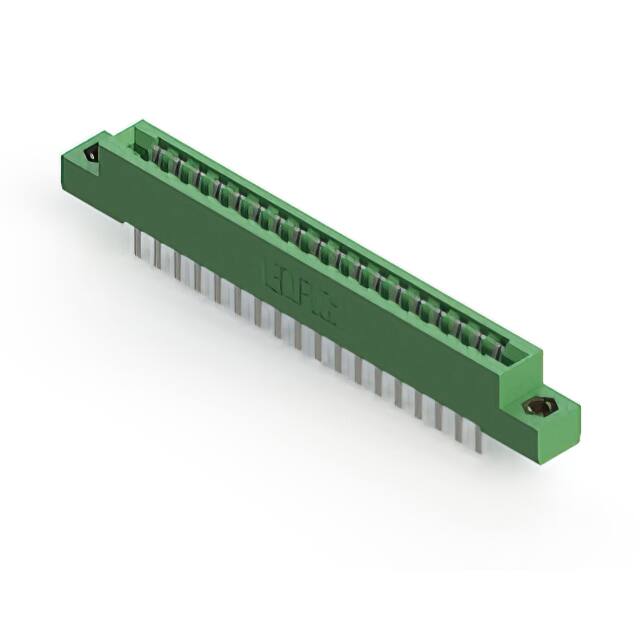

807-036-442-207

Part Number 807-036-442-207

Manufacturer EDAC Inc.

Description CONN EDGE DUAL FMALE 36POS 0.156

Package -

Datasheet EDAC-807-857-Series-High-Temp-Card-Edge-Connectors-English-Ordering-Guide.pdf 807-036-442-207_2.pdf

Quantity

24536 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Product Status

Active

Number of Rows

Contact Finish

Tin

Card Type

Non Specified - Dual Edge

Gender

Female

Color

Green

Number of Positions/Bay/Row

Pitch

0.156" (3.96mm)

Termination Rows

Flange Feature

Flush Mount, Top Opening, Threaded Insert, M3

Operating Temperature

-40°C ~ 125°C

Termination

Wire Wrap

Contact Type

Semi Bellows

Features

Mounting Type

Through Hole

Material - Insulation

Diallyl Phthalate (DAP)

Series

807

Package

Bulk

Number of Positions

Base Product Number

807-036

Mfr

EDAC Inc.

Card Thickness

0.054" ~ 0.070" (1.37mm ~ 1.78mm)

Read Out

Dual

Contact Material

Copper Alloy

Contact Finish Thickness

Documents & Media

RESOURCE TYPE LINK

Datasheets

EDAC-807-857-Series-High-Temp-Card-Edge-Connectors-English-Ordering-Guide.pdf
807-036-442-207_2.pdf

Environmental Information

reach_219.pdf
516-020-520-462_2.pdf
