845-047-544-404 EDAC Inc.

Favorite Products

Request Free Samples

845-047-544-404

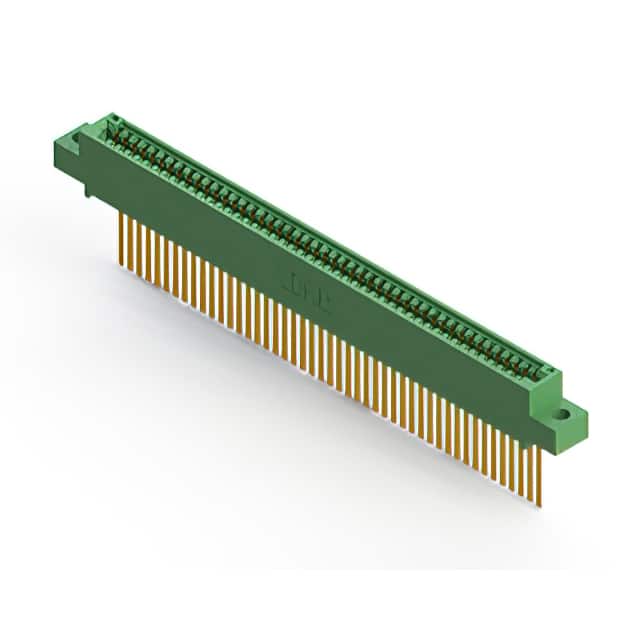

Part Number 845-047-544-404

Manufacturer EDAC Inc.

Description CONN EDGE SINGLE FML 47POS 0.100

Package -

Datasheet EDAC-845-895-Series-High-Temp-Card-Edge-Connectors-English-Ordering-Guide.pdf 845-047-544-404_2.pdf

Quantity

13687 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Card Type

Non Specified - Single Edge

Material - Insulation

Diallyl Phthalate (DAP)

Number of Positions

Pitch

0.100" (2.54mm)

Mounting Type

Through Hole

Contact Finish

Gold

Color

Green

Card Thickness

0.054" ~ 0.070" (1.37mm ~ 1.78mm)

Package

Box

Number of Rows

Read Out

Single

Product Status

Active

Features

Base Product Number

845-047

Termination

Wire Wrap

Contact Material

Copper Alloy

Termination Rows

Mfr

EDAC Inc.

Gender

Female

Series

845

Contact Type

Cantilever

Flange Feature

Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia

Operating Temperature

-40°C ~ 125°C

Number of Positions/Bay/Row

Contact Finish Thickness

10.0µin (0.25µm)

Documents & Media

RESOURCE TYPE LINK

Datasheets

EDAC-845-895-Series-High-Temp-Card-Edge-Connectors-English-Ordering-Guide.pdf
845-047-544-404_2.pdf

Environmental Information

516-020-520-462_2.pdf
reach_219.pdf
