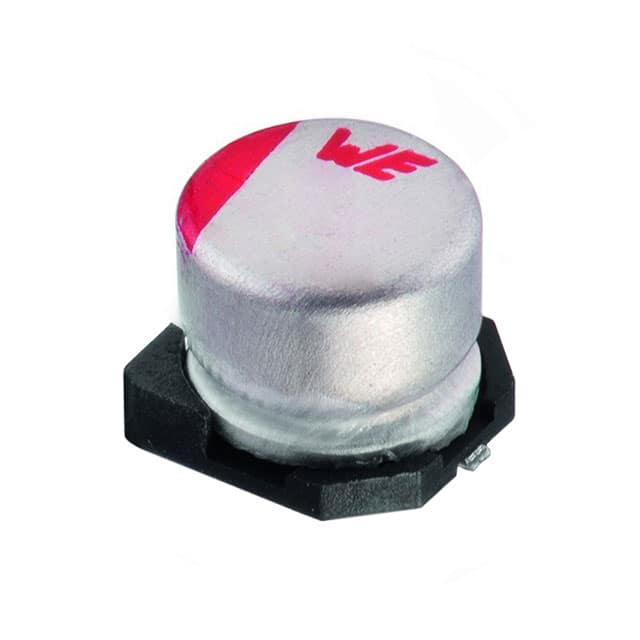

865080442004

Part Number 865080442004

Manufacturer Würth Elektronik

Description CAP ALUM 22UF 20% 25V SMD

Package -

Datasheet 865080442004_3.pdf

Quantity

18155 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Capacitors , Aluminum Electrolytic Capacitors

Surface Mount Land Size

0.209" L x 0.209" W (5.30mm x 5.30mm)

Package

Tape & Reel (TR)^^Cut Tape (CT)

Lead Spacing

Series

WCAP-ASLI

Tolerance

±20%

Lifetime @ Temp.

2000 Hrs @ 105°C

Operating Temperature

-55°C ~ 105°C

ESR (Equivalent Series Resistance)

Package / Case

Radial, Can - SMD

Ratings

Ripple Current @ Low Frequency

94.25 mA @ 120 Hz

Size / Dimension

0.197" Dia (5.00mm)

Ripple Current @ High Frequency

145 mA @ 100 kHz

Impedance

1.2 Ohms

Capacitance

22 µF

Applications

General Purpose

Voltage - Rated

25 V

Mounting Type

Surface Mount

Mfr

Würth Elektronik

Product Status

Active

Polarization

Polar

Height - Seated (Max)

0.217" (5.50mm)

Documents & Media

RESOURCE TYPE LINK

Datasheets

865080442004_3.pdf

PCN Other

PCN_Label_20220317_22-Dec-2021.pdf

Environmental Information

Certificate_of_Compliance_ROHS.pdf

PCN Design/Specification

PCN_WCAP_ASLI_20220121_21-Jan-2022.pdf
