892-058-540-207 EDAC Inc.

Favorite Products

Request Free Samples

892-058-540-207

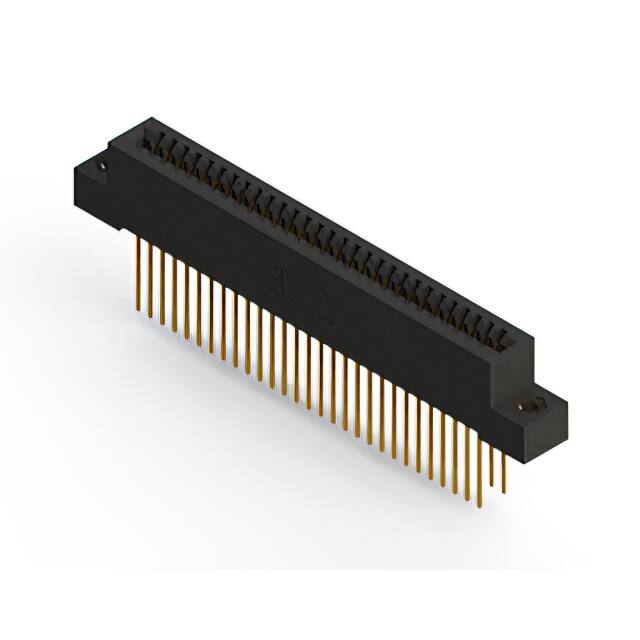

Part Number 892-058-540-207

Manufacturer EDAC Inc.

Description CONN EDGE DUAL FMALE 58POS 0.100

Package -

Datasheet EDAC-842-892-Series-High-Temp-Card-Edge-Connectors-English-Ordering-Guide.pdf 892-058-540-207_3.pdf

Quantity

89973 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Product Status

Active

Contact Finish Thickness

10.0µin (0.25µm)

Mfr

EDAC Inc.

Number of Positions/Bay/Row

Number of Positions

Card Thickness

0.054" ~ 0.070" (1.37mm ~ 1.78mm)

Mounting Type

Through Hole

Gender

Female

Features

Contact Finish

Gold

Termination Rows

Series

892

Pitch

0.100" (2.54mm)

Termination

Wire Wrap

Base Product Number

892-058

Package

Bulk

Read Out

Dual

Contact Material

Copper Alloy

Contact Type

Cantilever

Color

Black

Flange Feature

Flush Mount, Top Opening, Threaded Insert, M3

Material - Insulation

Polyphenylene Sulfide (PPS)

Card Type

Non Specified - Dual Edge

Number of Rows

Operating Temperature

-40°C ~ 125°C

Documents & Media

RESOURCE TYPE LINK

Environmental Information

516-020-520-462_2.pdf
reach_219.pdf

Datasheets

EDAC-842-892-Series-High-Temp-Card-Edge-Connectors-English-Ordering-Guide.pdf
892-058-540-207_3.pdf
