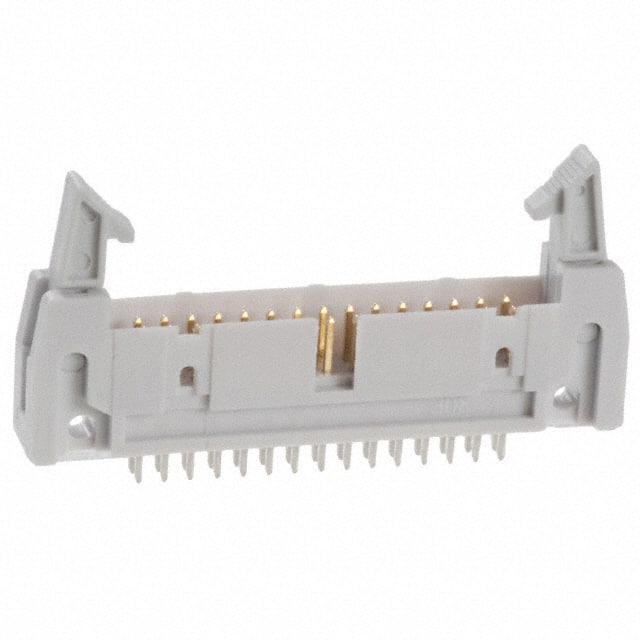

AWH30G-0232-T-R

Part Number AWH30G-0232-T-R

Manufacturer Assmann WSW Components

Description CONN HEADER VERT 30POS 2.54MM

Package -

Datasheet AWHx-G-02x2-T-R_Dwg.pdf

Quantity

21047 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Contact Finish - Post

Tin

Contact Length - Post

0.130" (3.30mm)

Voltage Rating

Series

Contact Shape

Square

Applications

Product Status

Obsolete

Connector Type

Header

Number of Rows

Contact Finish Thickness - Mating

Flash

Termination

Solder

Contact Length - Mating

Insulation Material

Polybutylene Terephthalate (PBT), Glass Filled

Pitch - Mating

0.100" (2.54mm)

Contact Material

Brass

Mfr

Assmann WSW Components

Contact Type

Male Pin

Overall Contact Length

Insulation Color

Gray

Row Spacing - Mating

0.100" (2.54mm)

Number of Positions Loaded

All

Contact Finish - Mating

Gold

Package

Tray

Fastening Type

Latch Lock/Eject Hooks, Long

Ingress Protection

Number of Positions

Style

Board to Cable/Wire

Operating Temperature

-40°C ~ 105°C

Material Flammability Rating

UL94 V-0

Mounting Type

Through Hole

Insulation Height

0.669" (17.00mm)

Current Rating (Amps)

Shrouding

Shrouded - 4 Wall

Features

Keying Slot

Mated Stacking Heights

Contact Finish Thickness - Post

Documents & Media

RESOURCE TYPE LINK

Datasheets

AWHx-G-02x2-T-R_Dwg.pdf
