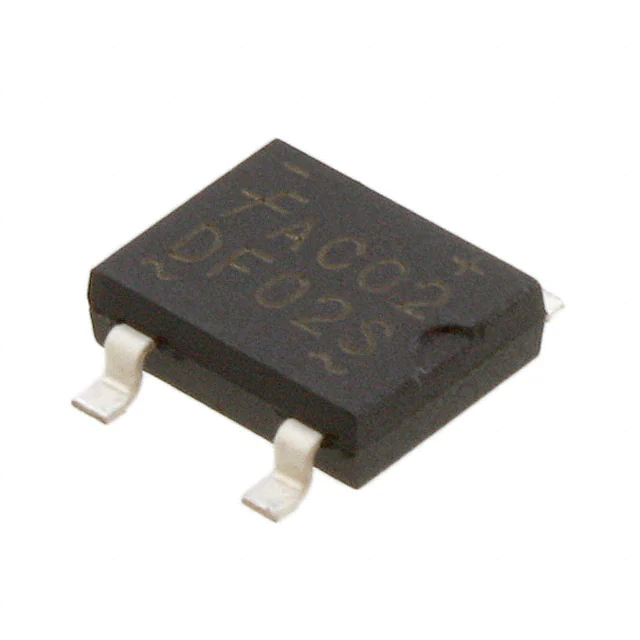

DF02S

Part Number DF02S

Manufacturer onsemi

Description BRIDGE RECT 1P 200V 1.5A 4SDIP

Package 4-SDIP

Datasheet ONSM-S-A0003585066-1.pdf

Quantity

52262 In Stock

Fill out the form and we will contact you shortly.

Contact Information

Please send RFQ and we will contact you shortly.

Quantitiy

Contact Name* *

Email* *

Country

Company Name

Product Attributes

Type PARAMETERS

Categories

Discrete Semiconductor Products , Diodes - Bridge Rectifiers

Package / Case

4-SMD, Gull Wing

Mfr

onsemi

Product Status

Active

Operating Temperature

-55°C ~ 150°C (TJ)

Supplier Device Package

4-SDIP

Voltage - Peak Reverse (Max)

200 V

Mounting Type

Surface Mount

Base Product Number

DF02

Diode Type

Single Phase

Current - Average Rectified (Io)

1.5 A

Technology

Standard

Voltage - Forward (Vf) (Max) @ If

1.1 V @ 1.5 A

Package

Tape & Reel (TR)^^Cut Tape (CT)

Series

Current - Reverse Leakage @ Vr

10 µA @ 200 V

Documents & Media

RESOURCE TYPE LINK

Datasheets

ONSM-S-A0003585066-1.pdf

PCN Design/Specification

P774AAB.pdf

PCN Assembly/Origin

FPCN24056X.pdf

PCN Other

P4C9AAB.pdf

Environmental Information

datasheet-DF02S-1.pdf
RoHS-statement.pdf

PCN Packaging

P7A2AAB.pdf
PB22420X.pdf
